BenQ 21.5" Full HD Surgical Display
BenQ 21.5" Full HD Surgical Display
Couldn't load pickup availability
- 3G SDI interface for full HD bandwidth
- With electromagnetic and RF shielding
- Fanless design reduces the risk of contamination
- Adjustable angle and direction
- Double anti-reflective coating
BenQ 21.5" Full HD Surgical Display

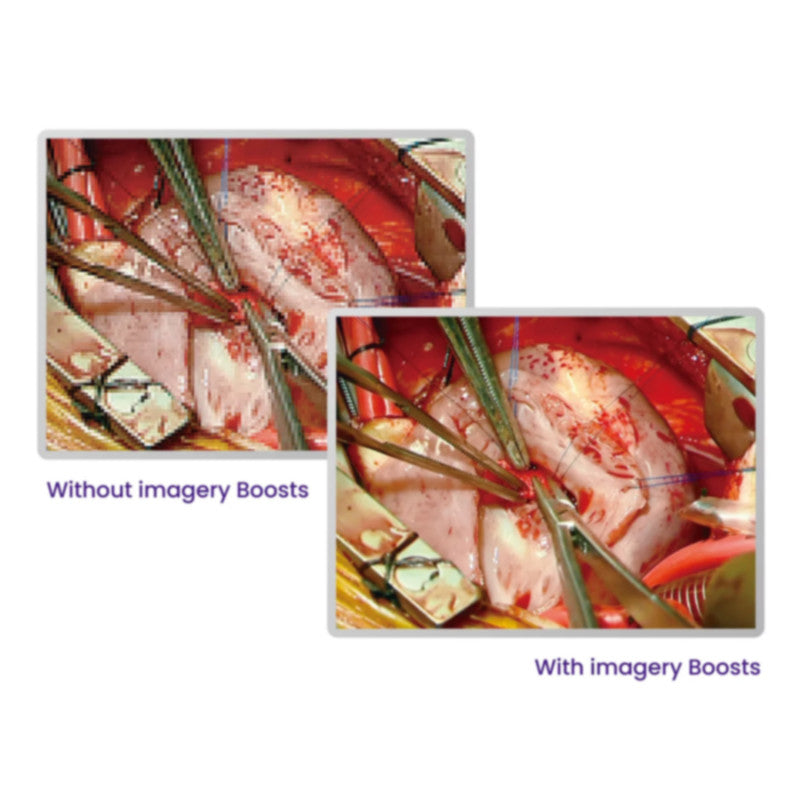

The BenQ 21.5" Full HD Surgical Display is designed for viewing endoscopy videos, radiology images and more. The Imagery Boosts feature enables staff to quickly toggle the display's visuals to suit the requirements of the given situation, enhancing diagnostic capabilities. The 3G-SDI interface supports a fast and stable connection, enabling reliable transmission of video signals across longer distances. Additionally, the surgical monitor is equipped with electromagnetic and RF shielding to reduce the impact tools might have on the display's video feed
The dual-source display allows images to be be input from two sources to separate windows and enables individual adjustment of color temperature and gamma curve of each image source. In case of power interruption or failure, the Input Safeguard feature allows the display to automatically and seamlessly switch to a backup signal source. Thanks to the intuitive design, the monitor angle and direction can be easily adjusted. A double anti-reflective coating reduces glare and enhances light transmission. The surgical display is fanless to minimise the risk of circulating airborne pathogens in the operating room.
Product Details
- BenQ 21.5" Full HD Surgical Display
- Imagery Boosts feature
- 3G-SDI interface for full HD bandwidth over longer distances
- Ensures stable and fast connection
- Added protection against electromagnetic interference
- Reduces the impact of electromagnetic fields on imaging quality
- Input Safeguard feature in case of interruption or power failure
- Dual-source display allows images to be input from two sources to two separate windows
- Individual adjustment of colour temperature and gamma curve of each image source
- Personalised viewing with multi-image layouts (PIP and PBP) and mirroring and image rotation functions
- User-specific settings can be stored for various scenarios
- User-friendly interface
- Unique back cover design and streamlined appearance

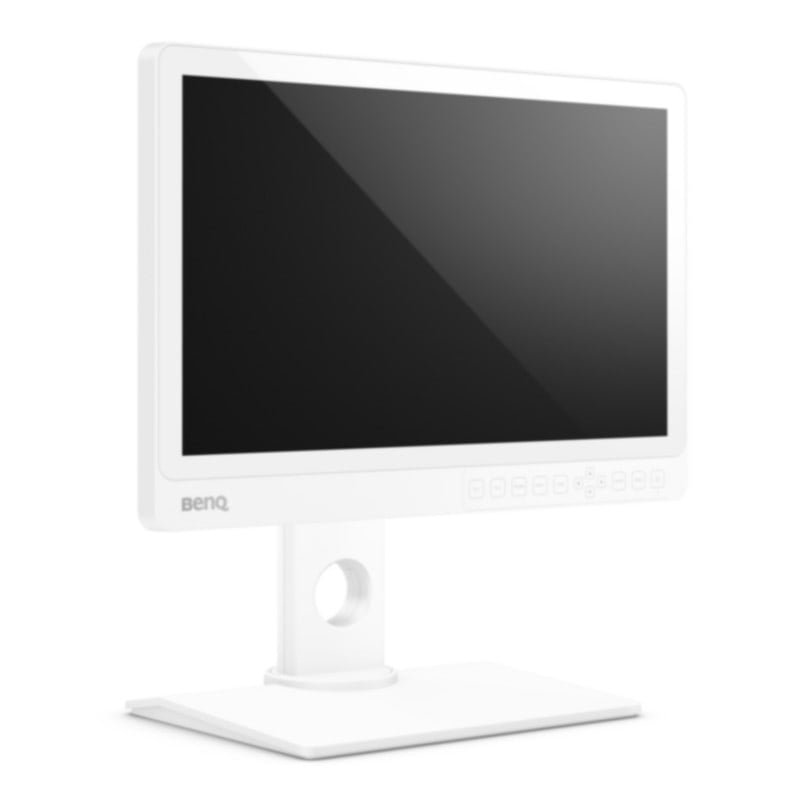

- Display angle and direction can be easily adjusted
- Easy-to-clean surfaces and materials
- Double anti-reflective coating and enhanced light transmission
- Fanless design reduces the risk of pathogens circulating in the operating room
- Front rated IP45 splash-proof; Rear rated IP32 splash-proof and dust-proof
- Specially treated materials prevent microbial growth and unpleasant odours
- For viewing endoscopy videos, radiology images and more
Technical Specifications
| Display | |
| Type | TFT AM LCD |
| Backlight | LED |
| Size (diagonal) | 21.5" (546.86 mm) |
| Dimension | 476.064 x 267.786 mm |
| Resolution | 1920 x 1080 |
| Viewing Angle | 178° / 178° |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colour Depth | 16.7 million |
| Inputs | |
| DVI | 2x DVI-D |
| Display Port | 1x |
| SDI | 1x 3G-SDI (BNC) |
| VGA | 1x HD-15 |
| RGBS/YPbPr | via VGA connector (HD-15) |
| S-Video | 1x Mini-DIN 4-pin |
| Composite | 1x BNC |
| Outputs | |
| DVI | 1x DVI-D |
| SDI | 1x 3G-SDI (BNC) |
| S-Video | 1x Mini-DIN 4-pin |
| Composite | 1x BNC |
| DC Output | 1x 5V Output (up to 2A) |
| Control Inputs | |
| Serial Remote | 1x RJ-45 |
| Service Port | 1x Upstream, USB 2.0 Type B Port |
| Power | |
| Power Consumption | 45 W (Maximum) |
| Design | |
| Display Protection | Double Anti-reflective Coating |
| Waterproof Rating | IP45 (Front); IP32 (Back) |
| Dimensions | 524.2 x 353.7 x 70.5 mm |
| Weight | Approx. 5.2 kg |
| Environmental Conditions | |
| Operating Temperature | 0 to +35 °C |
| Operating Humidity | 20-80% (non-condensing) |
| Atmospheric Operating Pressure | 700-1060 hPa |
| Package Contents | |
| Power Adapter, Power Cord, DVI-D Cable, S-Video Cable, User Manual (CD), QSG, Screen Stand, Cable Clamping Kit | |
