BenQ 26" Full-HD Surgical Monitor
BenQ 26" Full-HD Surgical Monitor
Couldn't load pickup availability
- With 3G-SDI interface and image enhancement functions
- Protected against electromagnetic interference
- User-specific setting profiles can be saved
- Double anti-reflective coating
- Automatic color temperature and gamma curve adjustment
BenQ 26" Full-HD Surgical Monitor
The BenQ 26" Full-HD Surgical Monitor is designed for viewing endoscopy videos and radiology images, offering customizable display adjustments through its image enhancement functions. Its 3G-SDI interface ensures fast and stable connectivity, enabling reliable signal transmission over longer distances. Additionally, the surgical monitor is equipped with electromagnetic and radiofrequency shielding.
The dual-source display allows two independant video sources to be displayed side by side on a single monitor, with independent adjustments for color temperature and gamma curve. In case of power interruption or failure, it seamlessly switches to an alternate power source. Its unique design allows for optimal monitor adaptation. In addition, double anti-reflective coating reduces glare and enhances light transmission providing users with a clearer view.
Product Details
- BenQ 26" Full-HD Surgical Monitor
- Customizable display adjustments with image enhancement functions
- 3G-SDI interface for Full-HD bandwidth over longer distances
- Ensures stable and fast connectivity
- Additional protection against electromagnetic interference
- Reduces the impact of electromagnetic fields on imaging quality
- Automatic and seamless switch to alternate signal source during interruption or failure
- Simultaneous display of two images in separate windows
- Automatic adjustment of color temperature and gamma curve for individual images
- Personalized viewing with multi-image layouts (PIP and PBP) and mirroring and rotation functions
- User-specific settings can be stored for different scenarios
- User-friendly interface for easy operation

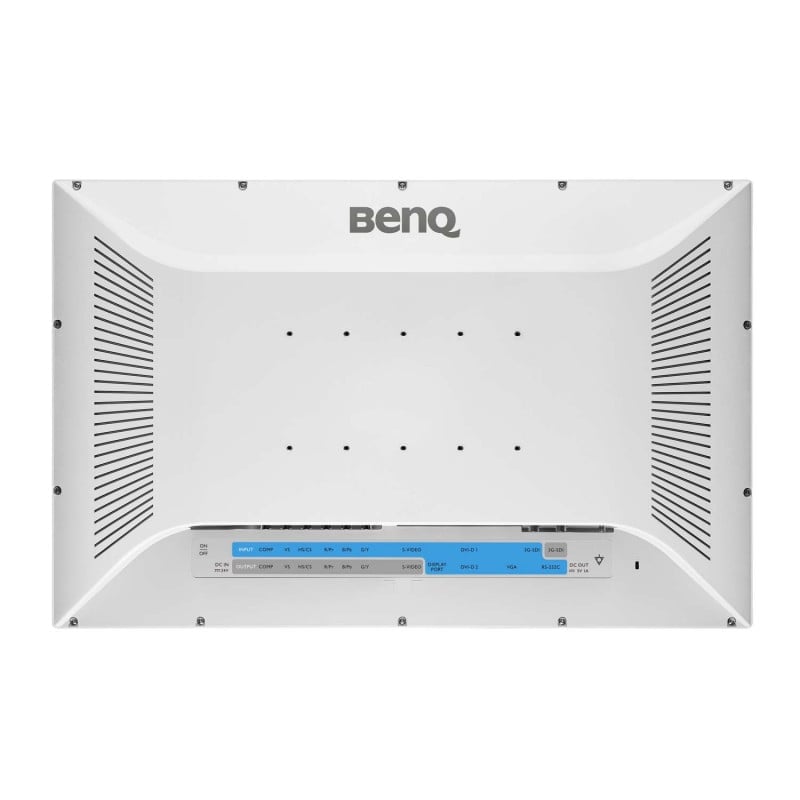

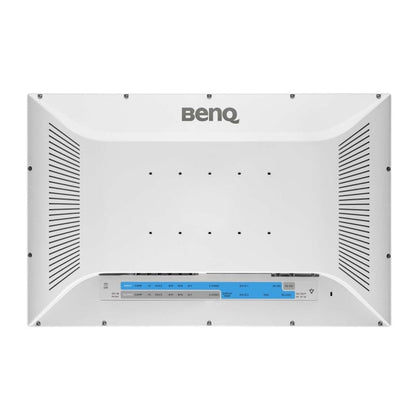

- Unique rear design and streamlined appearance

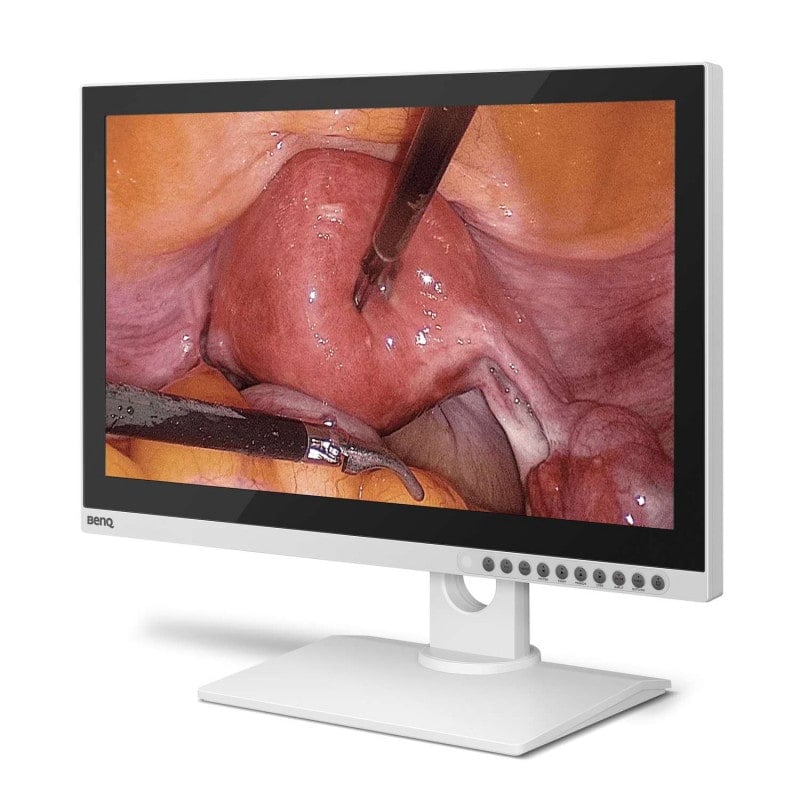

- Monitor angle and orientation optimally adjustable
- Easy-to-clean surfaces and materials
- Double anti-reflective coating for improved light transmission
- Front side water-resistant according to IPX3
- Treated materials prevent microbe growth or unpleasant odours
- For viewing endoscopy videos, radiology images, and more
Technical Specifications
| Display | |
| Type | TFT Color IPS LCD |
| Backlight | LED |
| Size (diagonal) | 26" (66.1 cm) |
| Dimensions | 576 x 324 mm |
| Resolution | 1920 x 1080 |
| Viewing Angle | 178° / 178° |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 1400:1 |

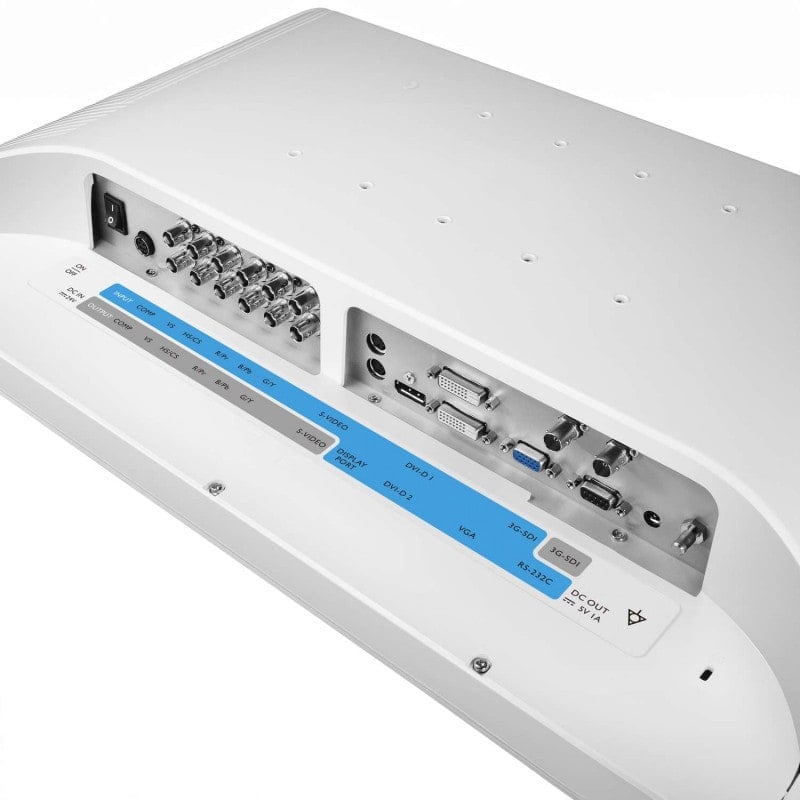

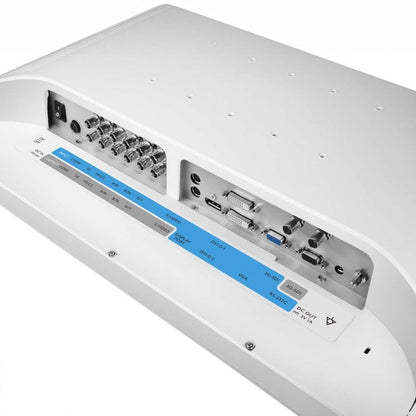

| Inputs | |
| DVI | 1x DVI-D |
| Display Port | 1x |
| SDI | 1x 3G-SDI (BNC) |
| VGA | 1x HD-15 |
| RGBS/YPbPr | 5x BNC |
| S-Video | 1x Mini-DIN 4-pin |
| Composite | 1x BNC |
| Outputs | |
| SDI | 1x 3G-SDI (BNC) |
| RGBS/YPbPr | 5x BNC |
| S-Video | 1x Mini-DIN 4-pin |
| Composite | 1x BNC |
| Control Inputs | |
| Serial Remote | 1x RS-232C, D-sub 9-pin |
| Power Supply | |
| Power Consumption | DC 24V, 3.75 A |
| Power Consumption | 80 W (Maximum) |
| Design | |
| Display Protection | Double Anti-Reflective Coating |
| Water Resistance | IPX3 (Front) |
| Environmental Conditions | |
| Operating Temperature | 0 to +40 °C |
| Operating Humidity | 20-80% (non-condensing) |
| Atmospheric Pressure | 700-1060 hPa |
| Package Contents | |
| Power adapter, DVI-D to DVI-D cable, S-Video cable, Instruction manual (CD), QSG, Screen stand, Cable management kit | |
