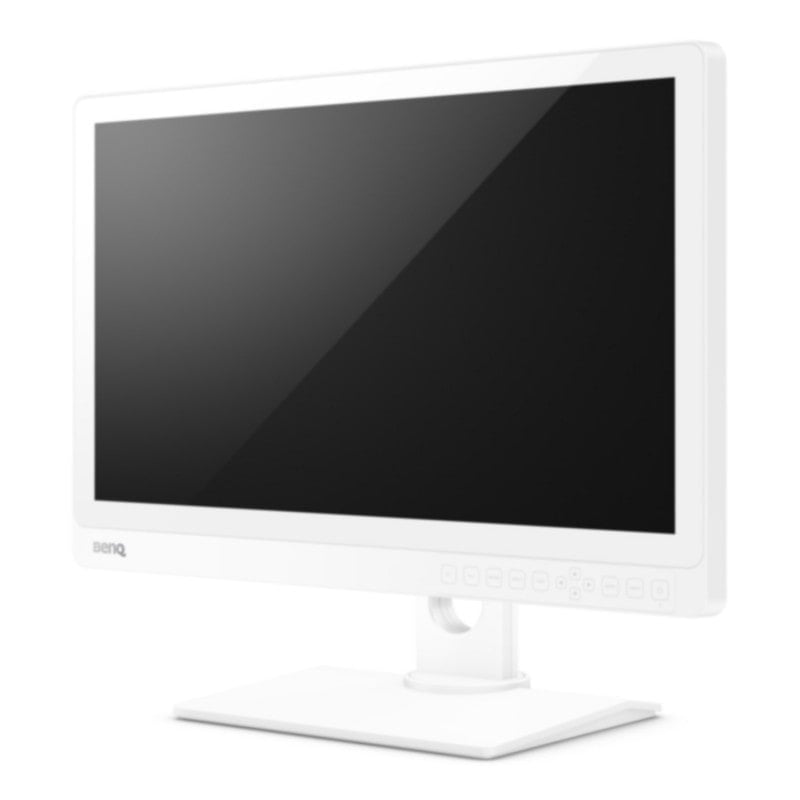

BenQ 27" High-Bright Full-HD Surgical Display

BenQ 27" High-Bright Full-HD Surgical Display

Regular price £3,924.95
Regular price £0.00 Sale price £3,924.95
Sale Sold out
Product overview
  • Full HD bandwidth thanks to 3G SDI interface
  • Protected from electromagnetic interference
  • Multi-image layouts, mirroring & rotation functions
  • With double anti-reflective coating
  • Fanless design reduces the spread of germs in the operating theatre

BenQ 27" High-Bright Full-HD Surgical Display

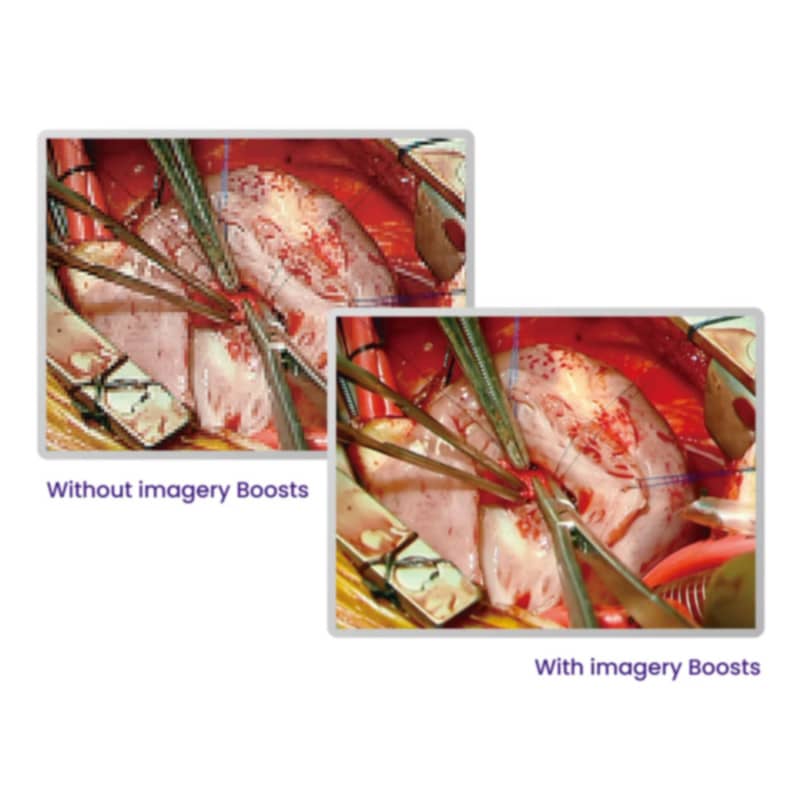

The BenQ 27" High-Bright Full-HD Surgical Display includes an imagery boosts feature that allows surgical staff to quickly toggle the display's visuals to suit the needs of the given situation for a better diagnosis. With the 3G-SDI interface, the surgical monitor ensures fast and stable connectivity with Full-HD bandwidth. Additionally, the surgical display is equipped with additional protection against electromagnetic and radiofrequency interferences.



The dual-source display feature enables images to be input from two different sources into separate windows, while also adjusting the color temperature and gamma curve of each image source independently. Multi-image layouts, mirroring, and rotation functions further enhance personalized viewing experiences. Users can save individualized settings for quick adjustments, accessible with a simple button press. The unique housing design allows medical personnel to swiftly adjust the monitor's angle and direction as needed. Additionally, the fanless design minimizes the risk of circulating airborne pathogens within the operating room. Furthermore, the monitor's specially treated surface inhibits microbe growth, reducing the potential for unpleasant odors and infections.



Product Details

  • BenQ 27" High-Bright Full-HD Monitor
  • Image enhancement features for situation-specific adjustments
  • Full-HD bandwidth over longer distances with 3G-SDI interface
  • Ensures fast and stable connectivity
  • Additional protection against electromagnetic and radiofrequency interferences
  • No impact of electromagnetic fields on display
  • Automatic and seamless switch to alternate signal source during power outage
  • Simultaneous display of multiple images in separate windows
  • Adjustable colour temperature and gamma curve for individual images
  • Multi-image layouts, mirroring, & rotation functions for personalized viewing
  • User-specific presets for various scenarios can be stored
  • User-friendly interface

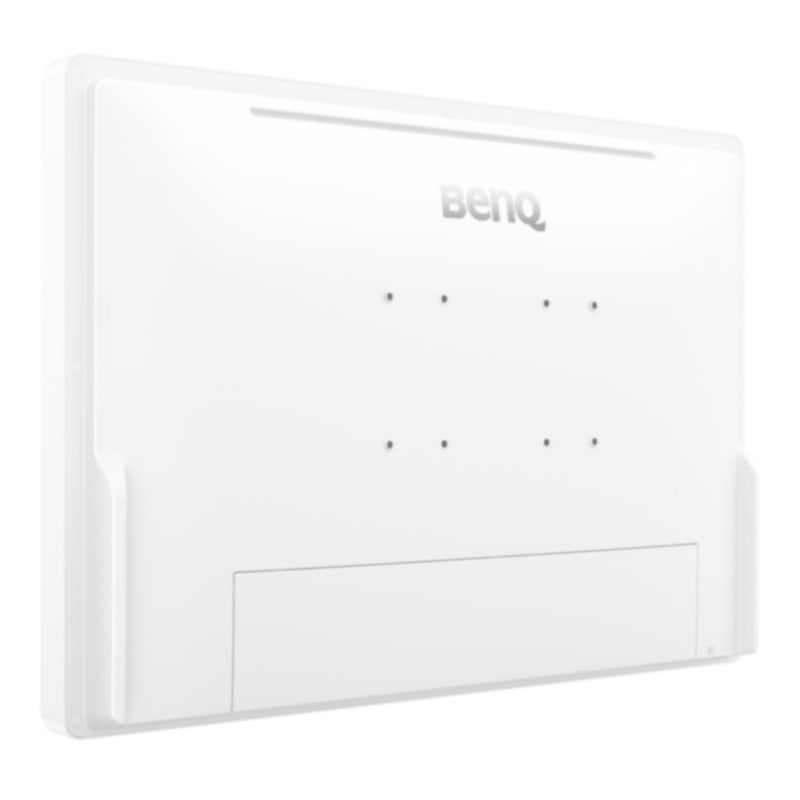

  • Unique housing design with easy-to-clean surface
  • Monitor angle and orientation optimally adjustable
  • Equipped with double anti-reflective coating
  • Reduces reflections and improves light transmission
  • Ventilation-free design reduces spread risk of pathogens
  • Front IP45 splash-proof, rear IP32 splash-proof and dust-proof
  • Utilizes a variety of visualization solutions
  • Treated surface inhibits microbe growth, etc.

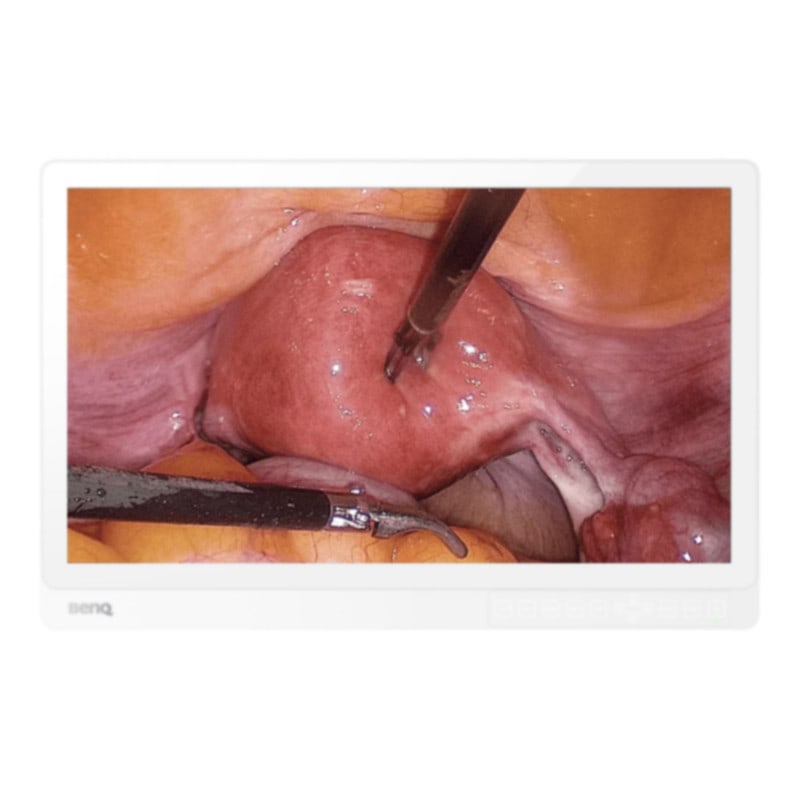

  • For high-resolution viewing of endoscopy videos, radiological images, and more



Technical Specifications

Display
Type TFT AM LCD
Backlight LED
Size (diagonal) 27" (685.8 mm)
Dimensions 597.888 x 336.312 mm
Resolution 1920 x 1080 (FHD)
Viewing Angle 178° / 178°
Brightness 1000 cd/m2
Contrast Ratio 1000:1
Color Depth 1.07 Billion
Inputs
DVI 2x DVI-D
Display Port 1x
SDI 1x 3G-SDI (BNC)
VGA 1x HD-15
RGBS/YPbPr via VGA connector (HD-15)
S-Video 1x Mini-DIN 4-pin
Composite 1x BNC
Outputs
DVI 1x DVI-D
SDI 1x 3G-SDI (BNC)
S-Video 1x Mini-DIN 4-pin
Composite 1x BNC
DC Output 1x 5V Output (up to 2A)
Control Inputs
Serial Remote 1x RJ-45
Service Port 1x Upstream, USB 2.0 Type B Port
Power Supply
Power Consumption DC 24V, 2.71A
Power Consumption 45W (Maximum)
Design
Display Protection Double Anti-reflective Coating
Waterproof Rating IP45 (Front); IP32 (Rear)
Dimensions 657 x 430 x 77.5 mm
Weight Approx. 8.8 kg
Environmental Conditions
Operating Temperature 0 to +35°C
Operating Humidity 20-80% (non-condensing)
Atmospheric Operating Pressure 700-1060 hPa
Included
Power Supply, Power Adapter, DVI-D Cable, HDMI Cable, S-Video Cable, User Manual (CD), Quick Start Guide, Screen Stand, Cable Clamps Set
