CardioNS E2 with snap-button cable | without tablet

CardioNS E2 with snap-button cable | without tablet

£1,536.81
£0.00 £1,536.81
Sale Sold out
Variant
Version
Product overview
  • High-quality and compact 12-channel ECG
  • Works with complex and modern algorithms
  • Detects, identifies and flags abnormalities
  • No drivers or batteries required
  • Can be used with mobile devices or tablets

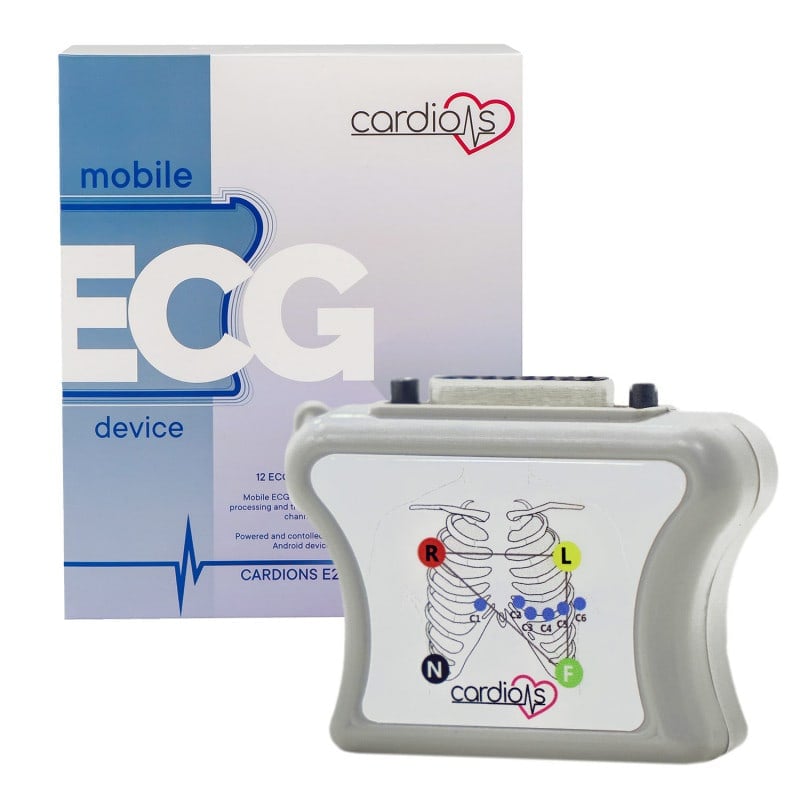

CardioNS E2

The CardioNS E2 is a high-quality and compact 12-channel ECG device designed for flexible use. It captures leads I, II, III, aVR, aVL, aVF and V1 to V6 and operates with complex and modern algorithms. These allow for reliable detection, identification and marking of anomalies, while simultaneously providing a real-time view of the heart's electrical activity.



Thanks to its plug-and-play functionality, no drivers or batteries are required, ensuring quick installation and setup. The CardioNS E2 is compatible with mobile devices and tablets. The free CardioNS app can be downloaded from the Google Play Store.

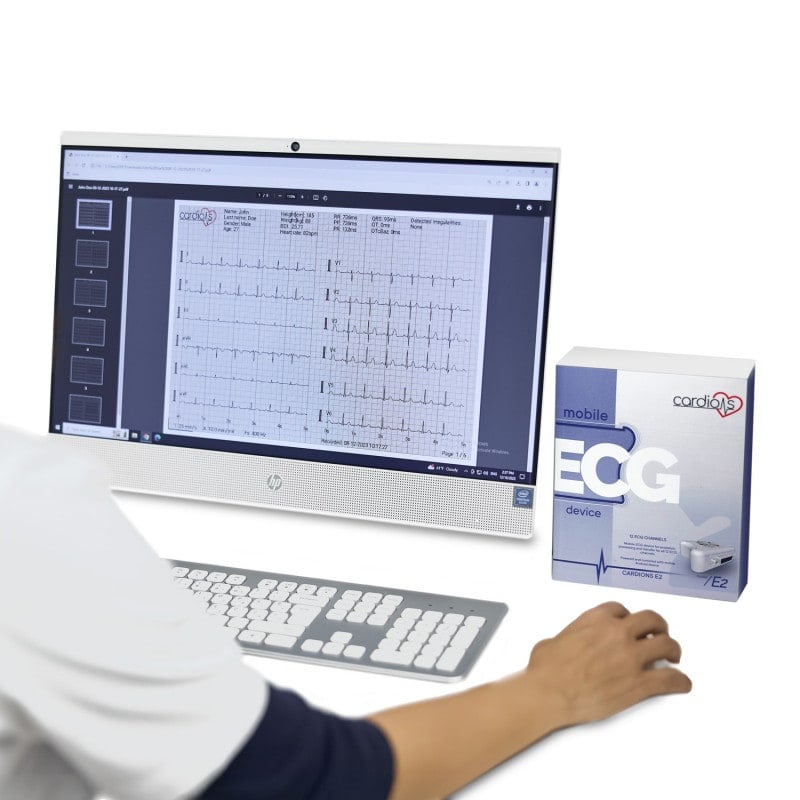

Equipped with a USB port, the ECG device provides a stable connection for data transfer. It also boasts excellent accuracy and low power consumption. After capturing an ECG, you can generate reports on sinus rhythm, tachycardia, 2nd-degree AV block, atrial fibrillation and arrhythmia in PDF format.



Product Details

  • CardioNS E2
  • High-quality and compact 12-channel ECG
  • Leads: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5 and V6
  • Operates with complex and modern algorithms
  • Detects, identifies, and marks anomalies
  • Designed for flexible use in various environments
  • No drivers or batteries required thanks to plug-and-play functionality
  • Usable with mobile devices or tablets
  • Allows real-time viewing of heart activity
  • Free CardioNS app available for download from the Google Play Store
  • Equipped with a USB port
  • USB connection ensures stable data transfer
  • Quick installation and setup
  • Excellent accuracy and low power consumption
  • Reports: sinus rhythm, tachycardia, 2nd-degree AV block, atrial fibrillation and arrhythmia
  • Reports can be generated in PDF format
  • Available with or without tablet

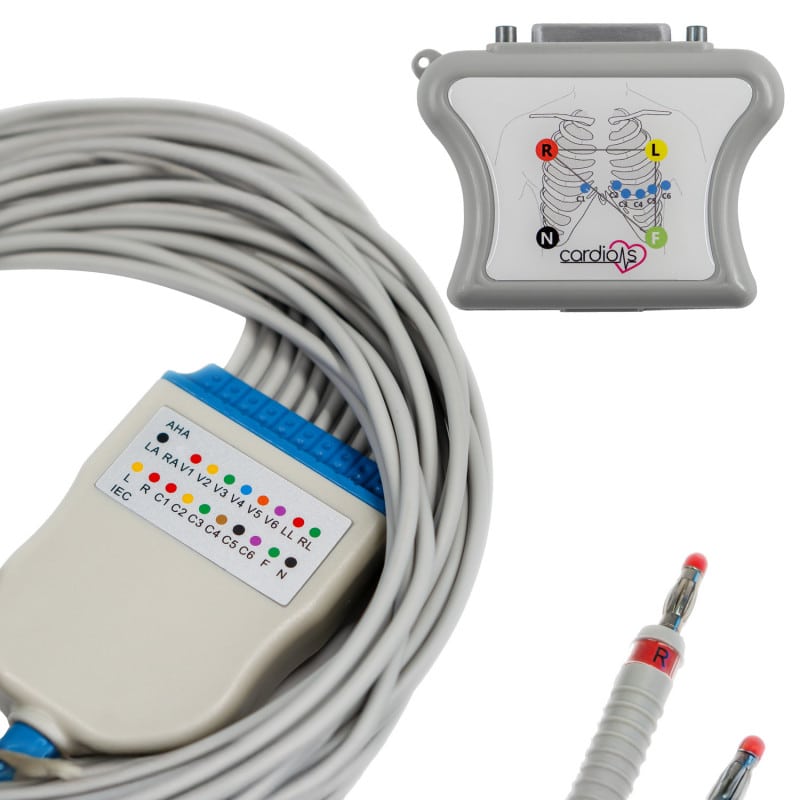

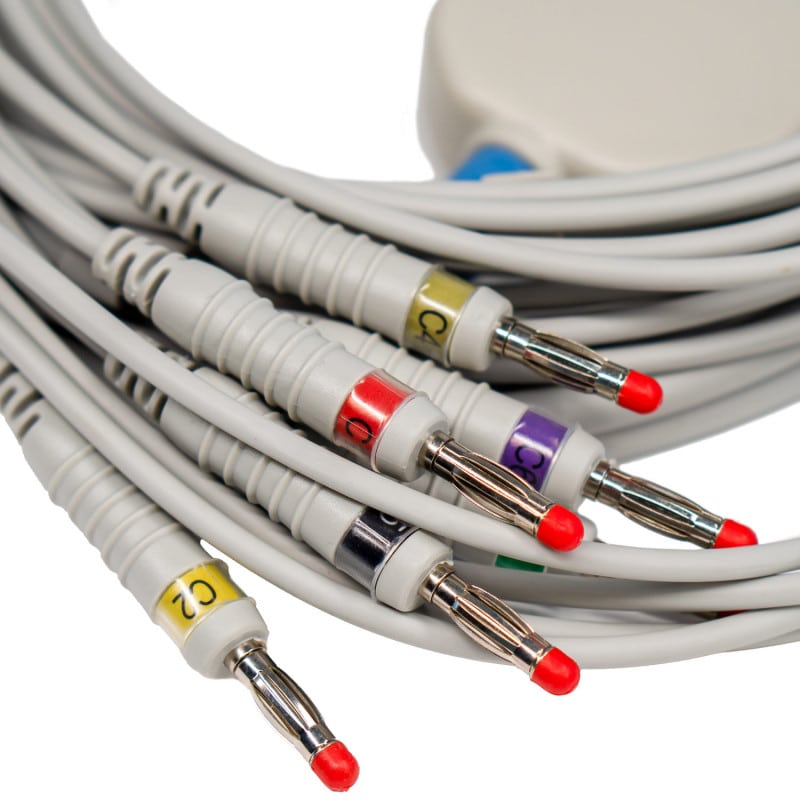

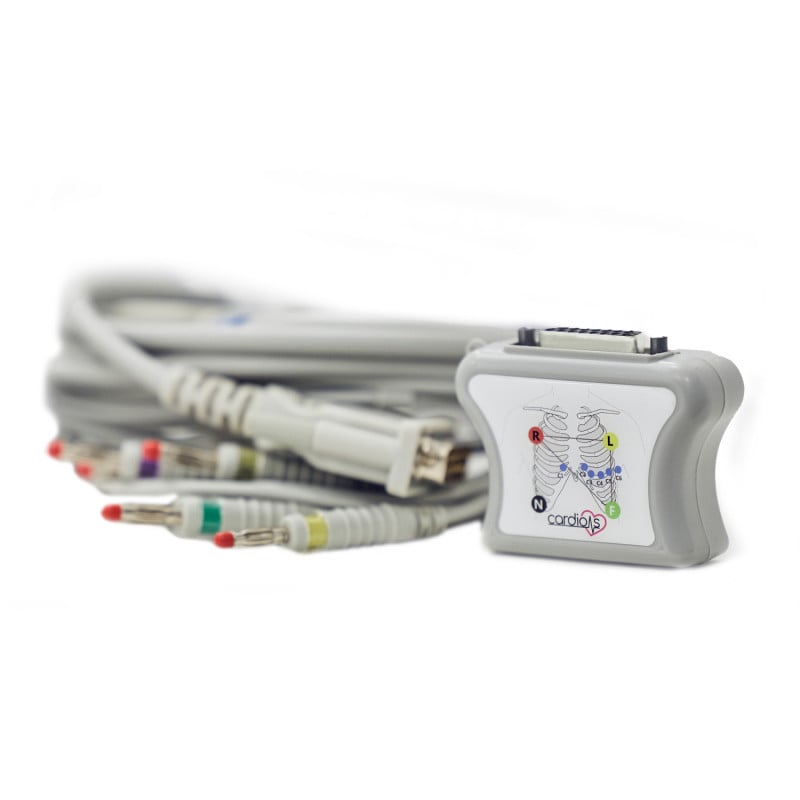

  • Available with snap type patient cable or banana type patient cable



The Free CardioNS App

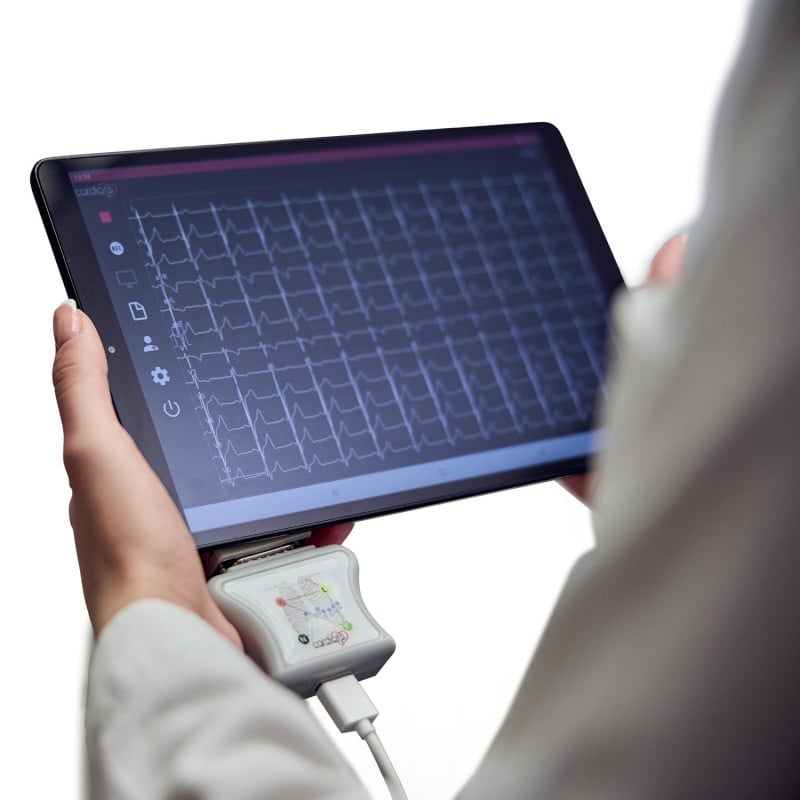

The CardioNS app allows for personalised visualisation of ECG signals, including customisation of colours and the number of signals. After capturing the resting ECG, the user can immediately review the results on a mobile device or print them as required.



Technical Specifications

Dimensions Basic Information
Width: 64.3 mm
Depth: 22 mm
Height: 50 mm
Weight: 50 g		 ADC Resolution: 24 Bit
Voltage: 5V/3.3V
Power Consumption: 0.5 W
Number of Channels: 12 (twelve)
Sampling Rate: 100 Hz – 1066 Hz
Input Range: ±5 mV
Processing Patient Data
Purpose: Recording, displaying, interpreting, streaming, and printing ECG signals Name, Date of Birth, Gender, Blood Pressure, Height, Weight, Status (Diabetes, Smoking, Alcohol, Hyperlipidaemia, Positive Family History, Medications, Pacemaker), Occupation, Address, Phone, Email
Recording Time Filters
1 to 60 minutes Low-pass Filter: 25 Hz, 40 Hz, 65 Hz, 80 Hz, 100 Hz
High-pass Filter: 0.05 Hz, 0.067 Hz, 0.4 Hz, 0.5 Hz, 0.67 Hz, 1 Hz
Notch Filter: 50 or 60 Hz Digital Filter
Lead Display Electrode Placement Detection
Standard (I, II, III), Unipolar (aVR, aVL, aVF), External (I, II, III, aVR, aVL, aVF), Precordial (V1-V6) Pacemaker Detection: between 2 mV and 250 mV, Duration between 0.1 – 2.0 ms
Data Management Protection Class
Report retrieval via the CardioNS application
Secure print output via the internal network, direct .pdf storage on a local device
Worklist integration for CSV		 Medical Device Category: Class IIa
Applied Parts: CF
RF Emissions (CISPR 11): Group 1, Class B
Degree of Protection: IP22
Applied Standards Operating Conditions
ISO 15223-1:2016, EN ISO 15223-1:2016, EN 1041:2008/A1:2013, EN ISO 14971:2012, IEC 62366-1:2015, IEC 60601-1:2005+A1:2015 Temperature: 5° to 40°C
Relative Humidity: up to 90% (limited condensation)
Air Pressure: 700 to 1060 hPa
Technical Requirements for the CardioNS Operating System Operating System: Android OS 7.0 or higher
Processor: Octa-Core CPU at 1.95 GHz per core
RAM: 3 GB (minimum)
Storage Space: Recommended 200 MB
Connectivity: Wi-Fi 802.11b/g/n



Included Items

  • Mobile ECG Device CardioNS E2
  • Cable with ECG leads
  • USB OTG cable
  • Instructions for use
  • Declaration of Conformity
  • Tablet (depending on variant selection)
