CardioSecur Active 15-Lead ECG Micro USB (Android)

• Specially designed for personal use
• Record complete ECGs anytime and anywhere
• Operation via the CardioSecur app
• Automatic evaluation in critical and non-critical cases
• Secure data transmission to the attending physician

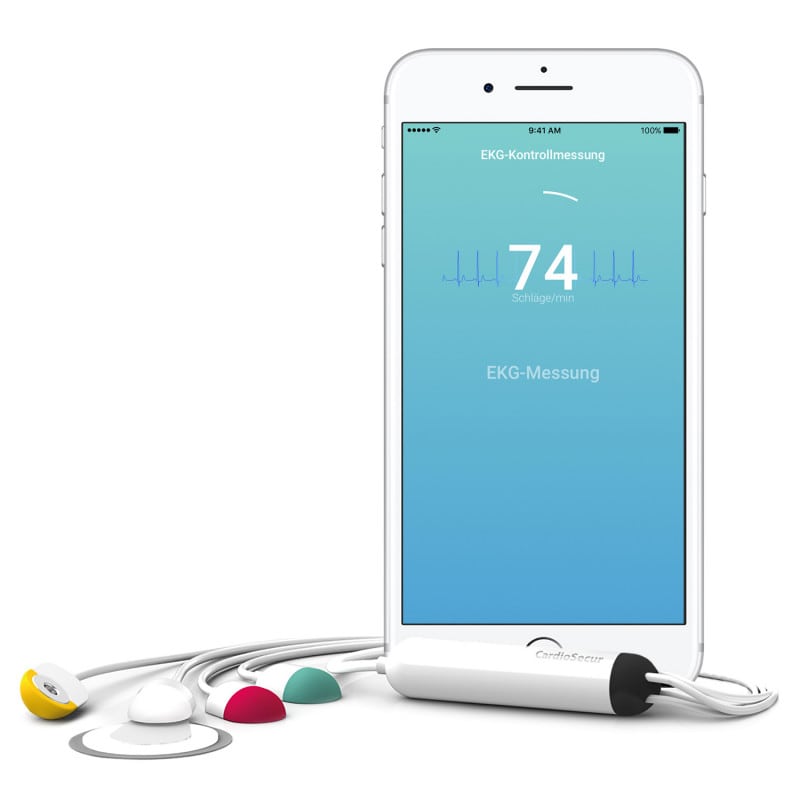

CardioSecur Active 15-Lead ECG

The CardioSecur Active 15-lead ECG allows patients to record a full 15-lead ECG anytime symptoms occur. It is easy and intuitive to use and operated via the CardioSecur app.

The ECG system automatically evaluates the recorded data, compares it with previous recordings, divides them into critical and non-critical cases and offers the patient a recommendation for action if necessary. The recorded ECGs can also be quickly and easily transferred to the attending physician.

Please note that the CardioSecur Active 15-lead ECG cannot be upgraded with the optionally available CardioSecur measurement, interpretation and enhancement software.

Product Details

• CardioSecur Active 15-lead ECG
• Specially designed for personal use
• Allows performing a full ECG anytime and anywhere
• Intuitive and easy to use
• Operation via the CardioSecur app
• Automatic evaluation in critical and non-critical cases
• Fast and secure data transfer to the attending physician possible
• System compares previous ECGs with the currently recorded one
• Optionally available with Lightning connector (iOS) or micro USB and USB-C connector (Android)
• Warranty: 2 years

Technical Details

• Bipolar, 3-channel
• Recording: 15-channel ECG (I, II, III, aVR, aVL, aVF, V1-V6, V7-V9)
• Measuring time: 10 seconds
• Memory: 1,000 recordings/1 GB
• Pulse rate: 18 to 256 beats per minute
• Bandwidth: 0.05 to 40 Hz
• Sampling rate: 250 Hz / 500 Hz

Delivery Contents

• CardioSecur Active 15-lead ECG
• 144 adhesive electrodes

Compatible End Devices
