COMEN H3 3-Channel ECG

• User-friendly 6.2" LED touchscreen
• Real-time display of the 12-lead waveforms
• With integrated thermal printer
• Internal memory for up to 10,000 data records
• Import and export of collected data via USB

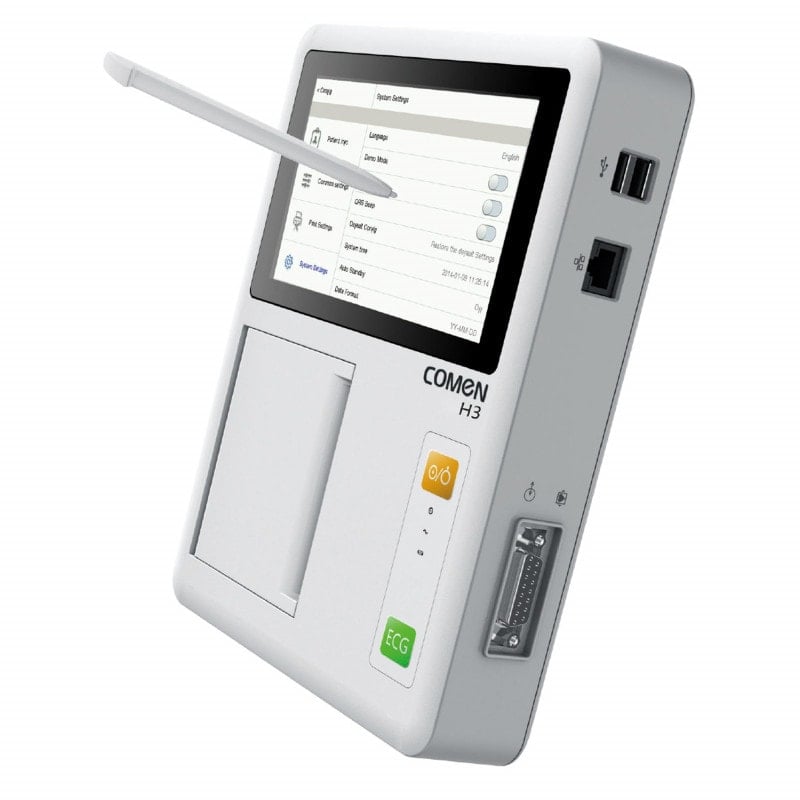

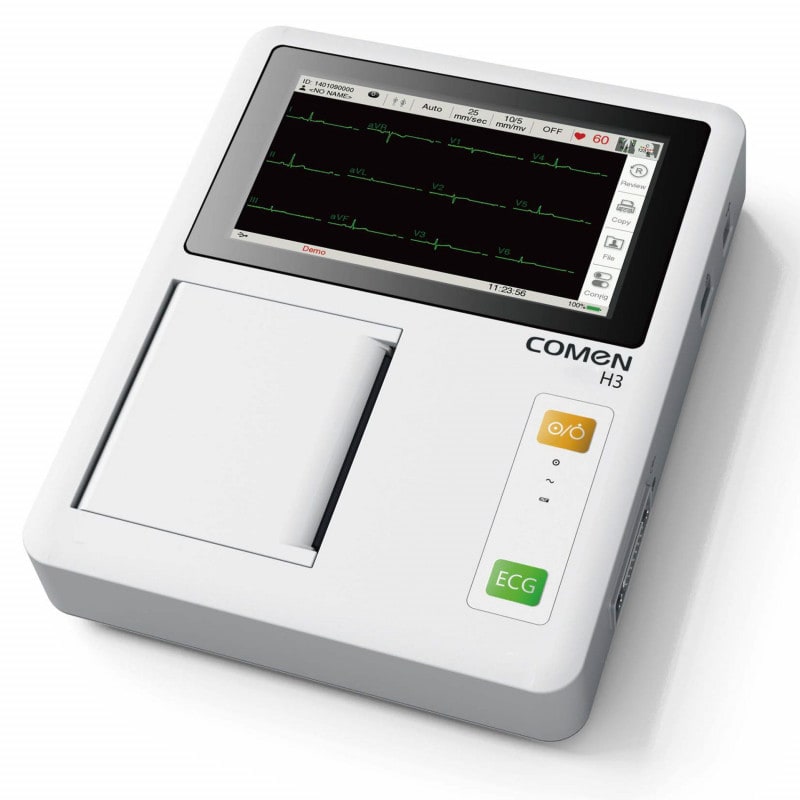

COMEN H3 3-Channel ECG

The COMEN H3 3-Channel ECG is equipped with an easy-to-use 6.2" LED touchscreen, allowing simultaneous real-time viewing of 12-lead waveforms. An integrated thermal printer enables immediate and seamless documentation of the recording, while practical ECG verification functions allow continuous monitoring for up to 10 minutes or sample recordings at 10-second intervals for 10 minutes.

Thanks to a variety of connectivity options, the ECG system can be connected to PC-based ECG management software. Data transfer occurs via one of the two USB ports. If needed, an external mouse, keyboard or barcode scanner can also be connected. The convenient search function enables quick retrieval of collected data using various search parameters, such as the patient's name or ID.

Product Details

• COMEN H3 3-Channel ECG
• User-friendly 6.2" LED touchscreen
• Automatic adjustment to ambient lighting
• Simultaneous real-time viewing of 12-lead waveforms
• Integrated thermal printer for seamless documentation
• Internal memory for up to 10,000 data (stored as binary image)
• Supports FTP server for up and download of data from a network
• Connectableto PC-based ECG management software
• Import and export of collected data via USB possible
• Printer paper: 80 mm x 20 m roll or folding paper
• ECG function for continuous monitoring or sample recording
• Recording modes: Standard print, manual or extended print
• Allows synchronous and sequential sampling
• With automatic shutdown and wake-up function
• External mouse, keyboard or barcode scanner can be connected
• Convenient search function for medical records, name, and ID
• Operated with a durable and rechargeable lithium battery
• Battery sufficient for 2 hours of continuous operation (7 hours without printing)
