DermLite HÜD2

• Smartphone-based dermatoscope
• Approved as a medical device
• With compact 10x lens
• 12 cross-polarized white LEDs
• Anti-reflection coating

DermLite HÜD2

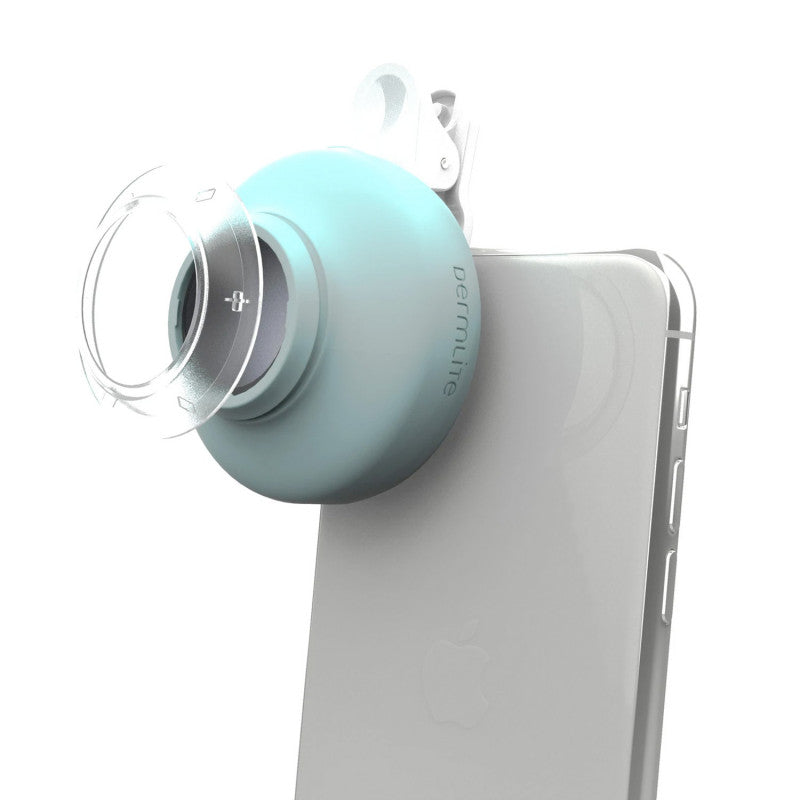

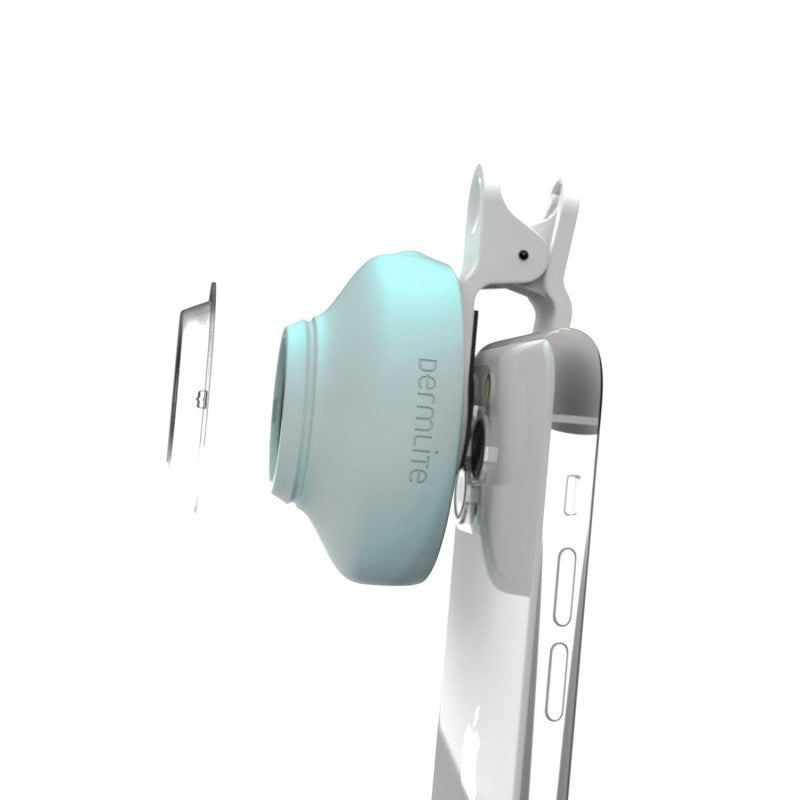

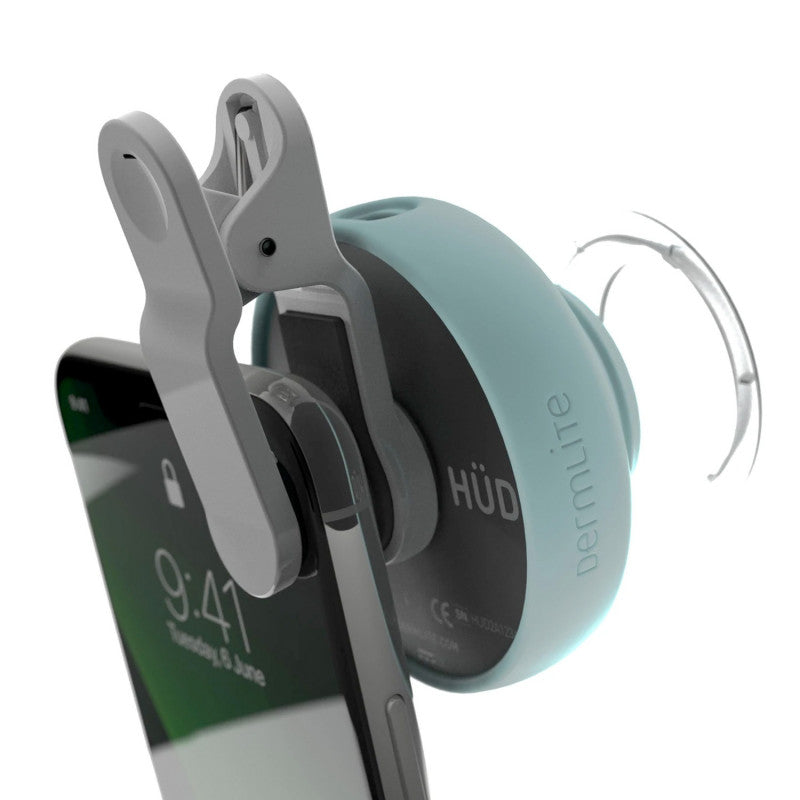

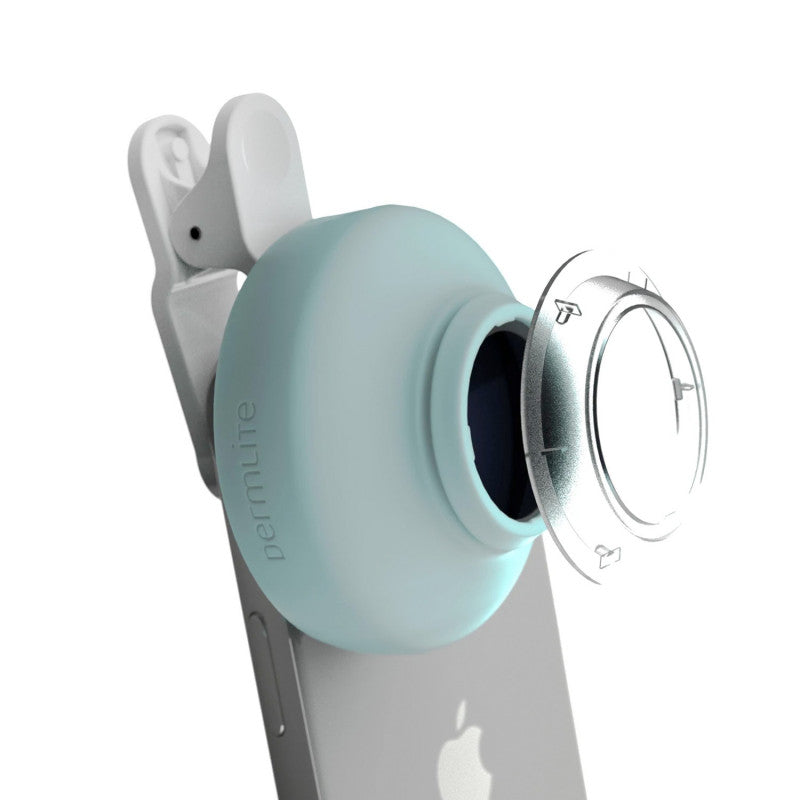

The smartphone-based DermLite HÜD2 dermatoscope can be clipped to virtually any smartphone or tablet thanks to its universal clamp-style adapter and is used for magnified visualization of skin lesions. The smartphone dermatoscope is approved as a medical device and is intended for professional dermatological diagnosis and other medical applications.

The innovative lens enables 10-fold magnification of skin lesions and 12 cross-polarized white LEDs further enhance the image.

Product Details

• DermLite HÜD2
• Smartphone-based dermatoscope with universal clip
• For magnified visualization of skin lesions
• Approved as medical device
• With compact 10x lens
• Easy to install on smartphone
• Polarization for better visualization of vascular structures
• Equipped with a rechargeable battery
• Live video recording possible
• 12 cross-polarized white LEDs
• 2 lens elements
• Ø lens: 12.5 mm
• 10x magnification
• 25 mm EFL
• With anti-reflection coating
• Works with polarizing filter
• Automatic switch-off after 3 minutes
• Dimensions: 59.2 x 59.2 x 30.0 mm (L x W x H)
• Weight: approx. 38.5 g
• Conforms to protection class IP22
• Manufacturer's warranty: 2 years

Technical data

• Battery: 3.7 V, 60 mAh, Lithium-Ion
• External power input: 5V DC via IEC 60950-1 compliant USB connector
• Connectors: USB micro type b for charging
• Operating voltage: 3.7 V DC

Delivery Contents

• DermLite HÜD 2 Dermatoscope with universal clip
• 2 IceCap skin contact caps
• Microfibre pouch
• USB to USB-C cable
