EC-3H Holter ECG System

• 3-channel long-term ECG system
• Light and compact ECG recorder
• Complete set incl. cardiospy software
• With LCD display
• Various editing and printing options

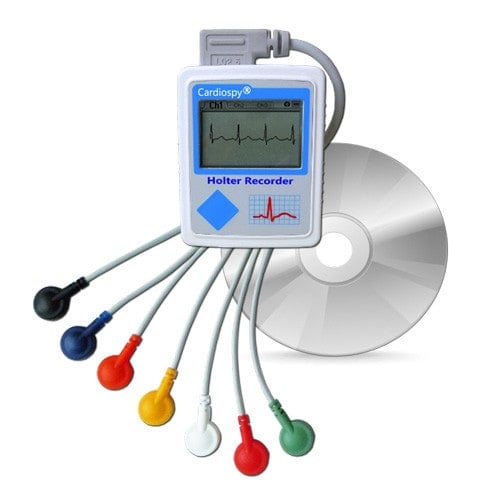

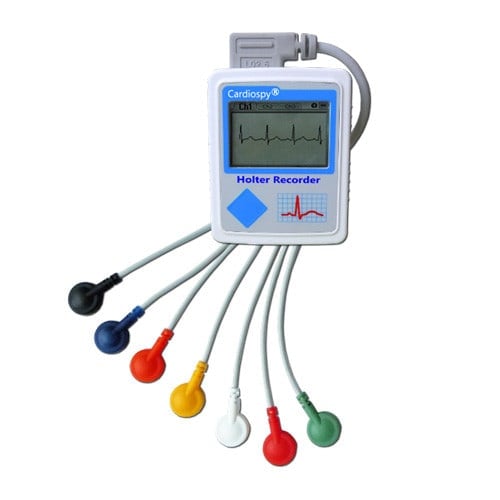

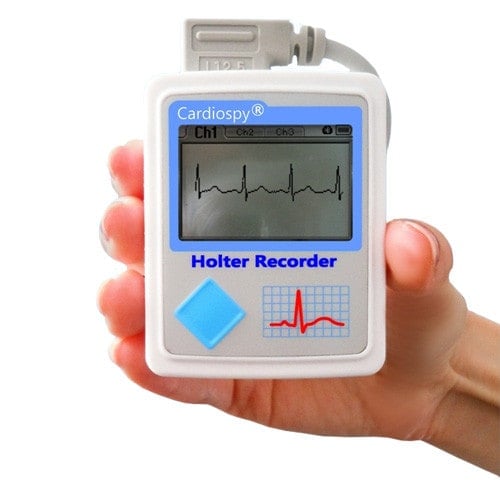

EC-3H Holter ECG System

EC-3H holter ECG system by Labtech is an easy-to-handle, 3-channel long-term ECG device, which is delivered with matching analysis software. The user-friendly Cardiospy software automatically evaluates the long-term ECG within a short time and thereby facilitates diagnosis from the doctor. Adjustable analysis parameters, colour-coded result labelling and various editing options additionally support the analysis of the ECG.

Product Details

• EC-3H Holter ECG system
• 3-channel long term ECG
• Compact dimensions
• Low weight
• LCD display
• Wireless communication with PC via Bluetooth
• Patient event button
• HR and ST trends
• ECG filter for improving signal quality
• Automatic evaluation of long-term ECG recordings
• 3D acceleration sensor for motion detection
• Calculates: ST, QT, AF, HRV and MIKRO-TWA
• Various editing and printing options
• Arrhythmia analysis
• Display of result
• Adjustable analysis parameter
• Report editing
• Interfaces: GDT, DICOM, HL-7
• Pacemaker analysis
• Recording time: 24, 48 or 72 hours
• Shipment includes Cardiospy software
• Dimensions: 6.75 x 5.3 x 1.85cm
• Weight: approx. 50g

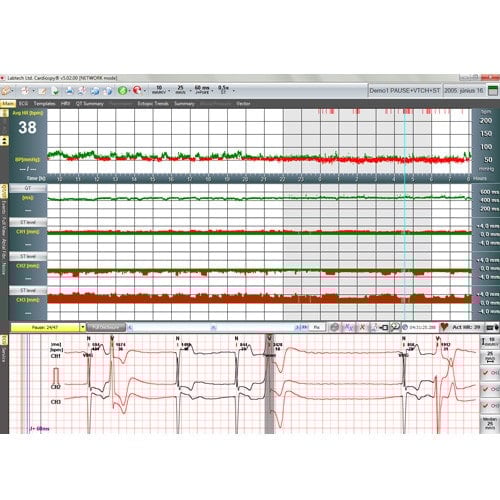

Cardiospy-Software at a Glance

• Easy to handle
• User-friendly
• Licence for unlimited number of workplaces
• Quick analysis of ECG recordings
• Precise QRS classification and rhythm analysis
• Colour-coded graphs
• ST level and gradient analysis
• QT analysis
• Various long-term ECG report formats
• Local and network operation
• Pulserate variability analysis
• Import and export functions
• Multilingual software
• One software for Holter and PC-ECGs, as well as other ECG devices by Labtech
• Compatible operating systems: Win XP (SP2), Vista, Win 10, Win 8, Win 7, 32 and 64 Bit

Delivery Contents

• EC-3H holter ECG system
• 4-wire patient cable (NEHB-lead)
• 2 rechargeable batteries
• Battery charger
• 1 belt pouch and 1 shoulder bag for ECG recorder
• Cardiospy software
• USB 2.0 Bluetooth-Stick
• Extension cable for USB 2.0 Bluetooth-Stick
• Adhesive electrodes
• USB connection cable
• User manual
• Transport case

Please note: The EC-3H holter ECG system is also optionally available with a 7-lead patient cable. If you would like this included, please simply indicate this on your order. Buy the user-friendly Holter ECG device from Labtech at affordable prices from Orange Medical. In our online shop for medical supplies you will also find other long-term ECG devices and suitable accessories for every need.
