ECOLOG-PRO RBR 915 MHz

• Wireless module for data loggers
• Supports up to 50 devices
• Encrypted data transmission
• Power supply via power supply unit/PoE
• Simple Ethernet connection

ECOLOG-PRO RBR

The ECOLOG-PRO RBR is a state-of-the-art wireless communication module from Elpro, specifically designed to connect the wireless ECOLOG-PRO data logger with the elproCLOUD and elproMONITOR. This module offers secure and encrypted transmission of measurement data, which is particularly important for monitoring valuable medical goods in rooms, refrigerators, freezers or ultra-low temperature environments.

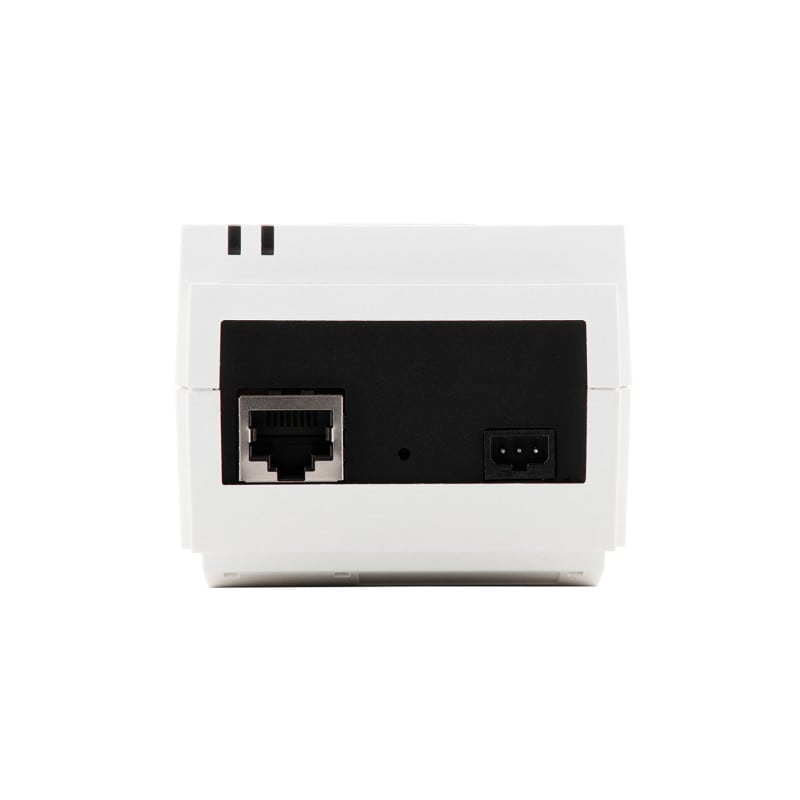

Thanks to the integration via an Ethernet connection (RJ45), installation is quick and straightforward, with no complex network configurations required. The device supports up to 50 wireless data loggers, ensuring reliable real-time data collection. With support for 868 MHz (Europe, UK, Singapore) or 915 MHz (USA, Australia, New Zealand), the ECOLOG-PRO RBR provides excellent range and signal strength.

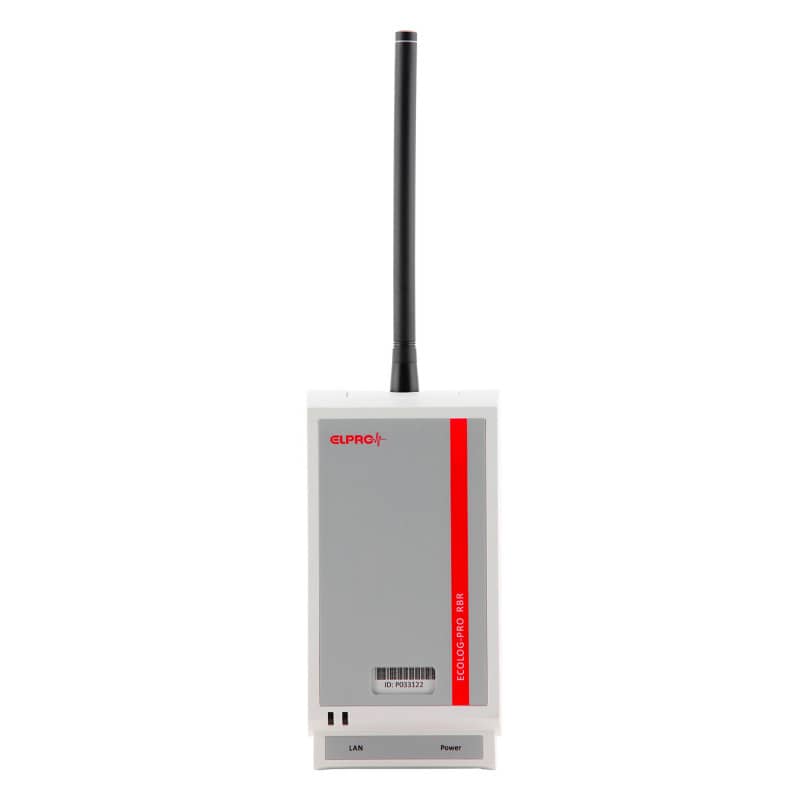

Power is supplied either via an external mains adapter or Power over Ethernet (PoE), allowing for flexible adaptation to different installation environments. The module also features two LEDs that indicate the connection status to both elproCLOUD/elproMONITOR and the connected data loggers. Its robust housing, made of ABS plastic, is IP20 certified and provides reliable protection for use in demanding medical environments.

Product Details

• ECOLOG-PRO RBR from Elpro
• Communication module for data loggers
• Compatible with elproCLOUD and elproMONITOR
• Supports up to 50 wireless data loggers simultaneously
• Encrypted and secure data transmission
• Operates via power adapter or Power over Ethernet (PoE)
• Two LEDs to indicate connection status
• Easy installation via LAN connection (RJ45)
• Works with elproCLOUD and elproMONITOR
• Ideal for monitoring rooms, refrigerators, freezers, and ultra-low temperature freezers
• Robust ABS plastic housing for high durability
• Ethernet cables are not included
• Available with or without power adapter
• 1 ECOLOG-PRO RBR communication module

Technical Specifications

• Wireless frequency: 868 MHz / 915 MHz
• Max. data loggers: 50
• Intervals: 1 to 60 minutes, configurable
• Protection class: IP20
• Operating temperature: 0 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Power supply: 100-240 V, 5.9 V DC
• Dimensions: 137 x 70 x 57 mm
• Weight: approx. 235 g
• Certifications: CE, UKCA, FCC, IMDA, RoHS
