Illuco IDS-1100 Dermatoscope

• Small, practical dermatoscope
• Polarised light can be switched on
• Brightness adjustable in 3 steps
• 25 mm precision optics, 10x magnification
• Smartphone compatible with optional adapter

Illuco IDS-1100 Dermatoscope

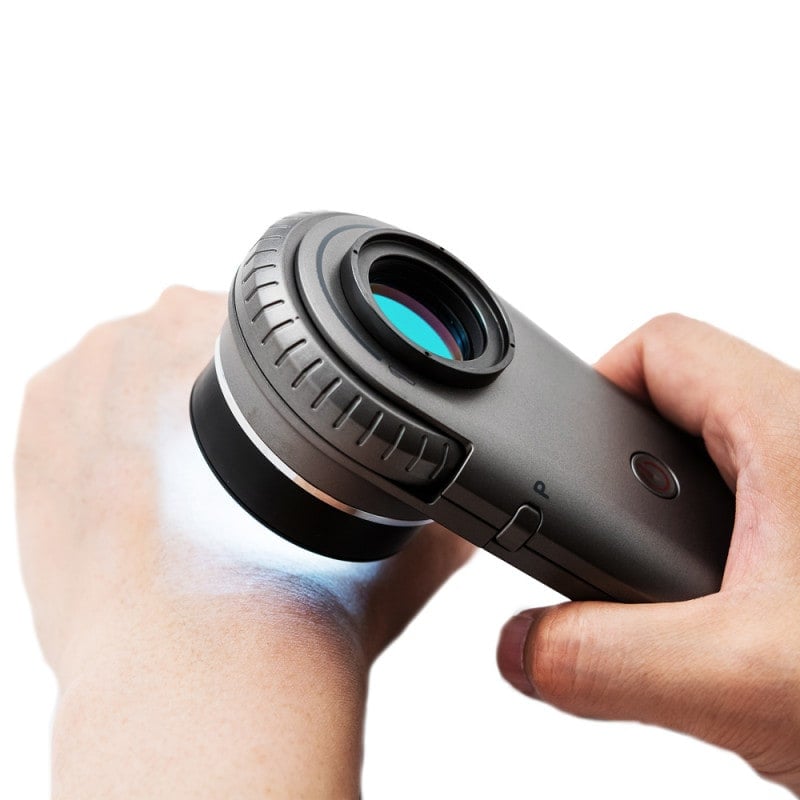

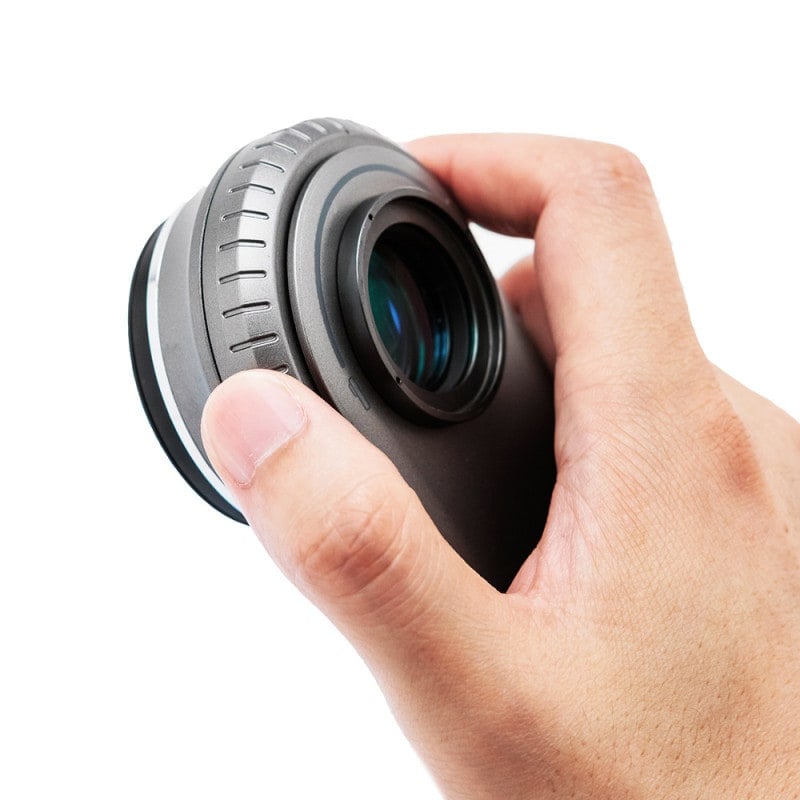

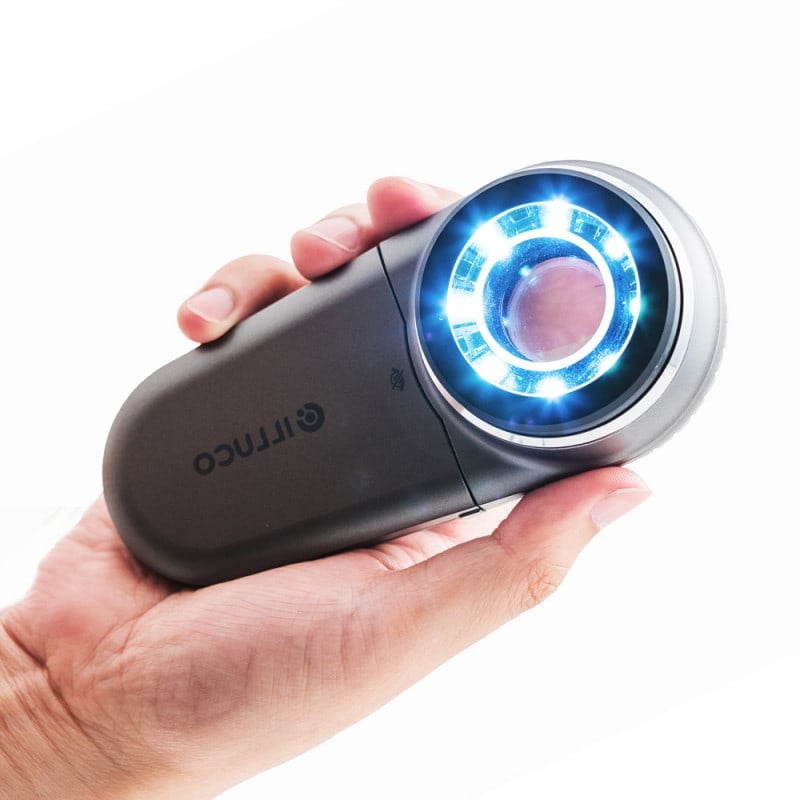

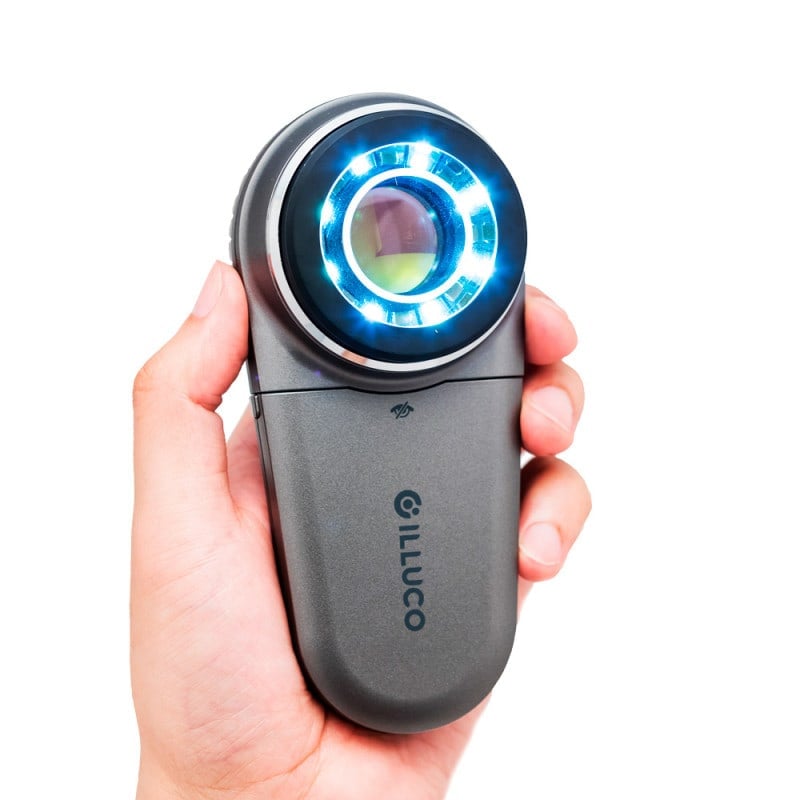

The Illuco IDS-1100 from DermoScan is a compact dermatoscope characterised by simple operation and a high-resolution precision lens. The illumination can be switched between polarised and non-polarised light, depending on the application. Therefore, the user can choose between non-contact dermoscopy and contact dermoscopy with an immersion liquid.

The Illuco dermatoscope offers 10x magnification, 3-stage brightness regulation and 5,000 Kelvin colour temperature. The integrated rechargeable battery only needs 3 hours to be fully charged using a micro USB cable.

Through use of the separately available adapter, this dermatoscope can also be deployed with compatible smartphones and tablets.

Product Details

• Illuco IDS-1100 dermatoscope
• 25 mm, high-resolution precision lens
• Distortion-free representation
• Brightness regulable in 3 stages
• 10x magnification
• Colour temperature: 5,000 Kelvin
• Settable to polarised and non-polarised mode

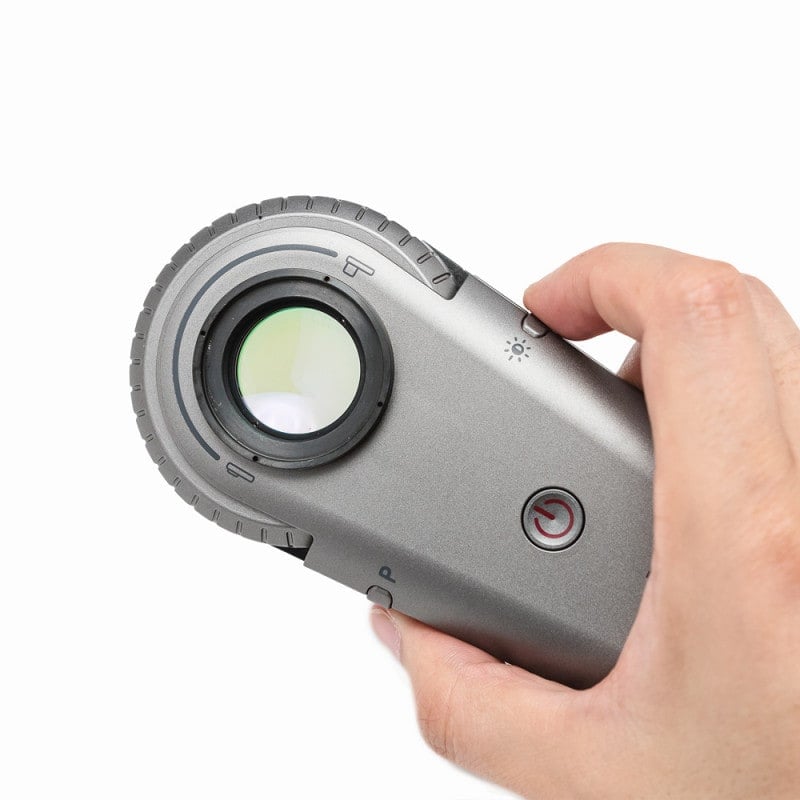

• Single-handed operation: all operating elements are centrally located
• Compact, ultra light and flat–sits great in your hand
• Useable in polarisation mode or with an immersion liquid

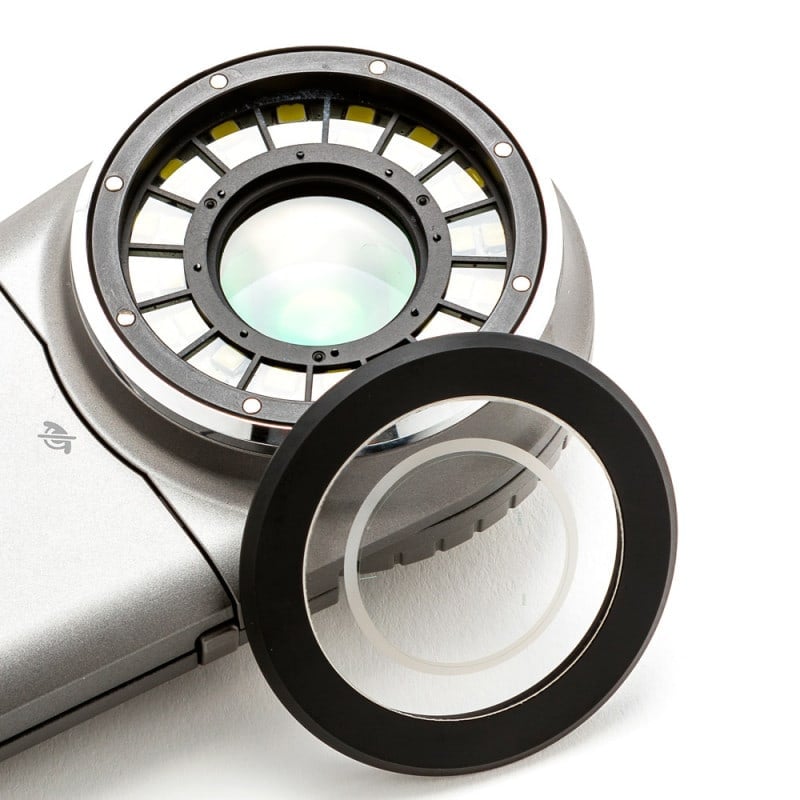

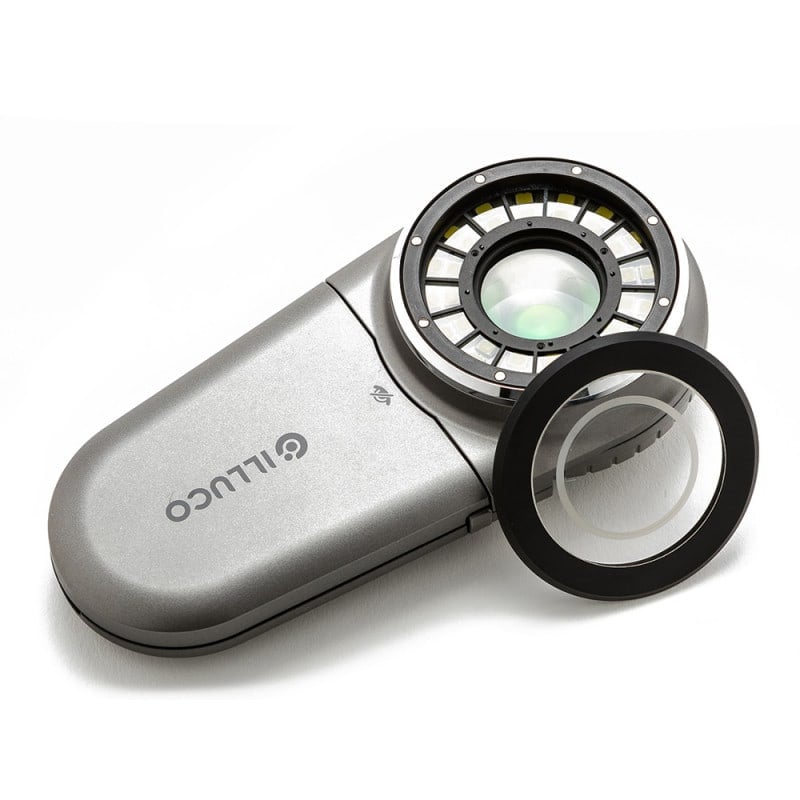

• Removable contact plate with 10 mm scale, easy to clean
• Automatic shutdown after 5 minutes to save energy
• Visual range: approx. 1 cm at 10 cm distance from eyes
• With rechargeable Lithium-Ion battery (1,150 mAH/3.7V), provides approx. 2 hours of continuous use
• Battery charge time: approx. 3 hours
• With battery charge level display
• Dimensions: 138 x 65 x 33 mm
• Weight: approx. 190 g
• LED lifespan: over 100,000 operating hours
• Compatible with various smartphones/tablets (specific adapter must be ordered)
• Small contact plate for difficult to reach areas separately available
• 7 year manufacturer warranty

Applications

• Early skin cancer screenings
• Examination of skin diseases
• Diagnosing scabies and phthiriasis
• Wart diagnostics
• Diagnosis of fungal infections
• Identification of hair and scalp diseases
• Determination of tissue to be removed due to difficult to define skin cancer

The Illuco IDS-1100 dermatoscope comes delivered  with the compatible micro USB charging cable, a cleaning cloth and the user handbook.
