iMAC 12 PRO

iMAC 12 PRO

£1,420.20
£0.00 £1,420.20
Sale Sold out
Product overview
  • Mobile ECG device
  • 10.4-inch touchscreen
  • Glasgow Interpretation Algorithm included
  • Operation via mains adapter or rechargeable battery
  • Memory for 10,000 data records

iMAC 12 PRO

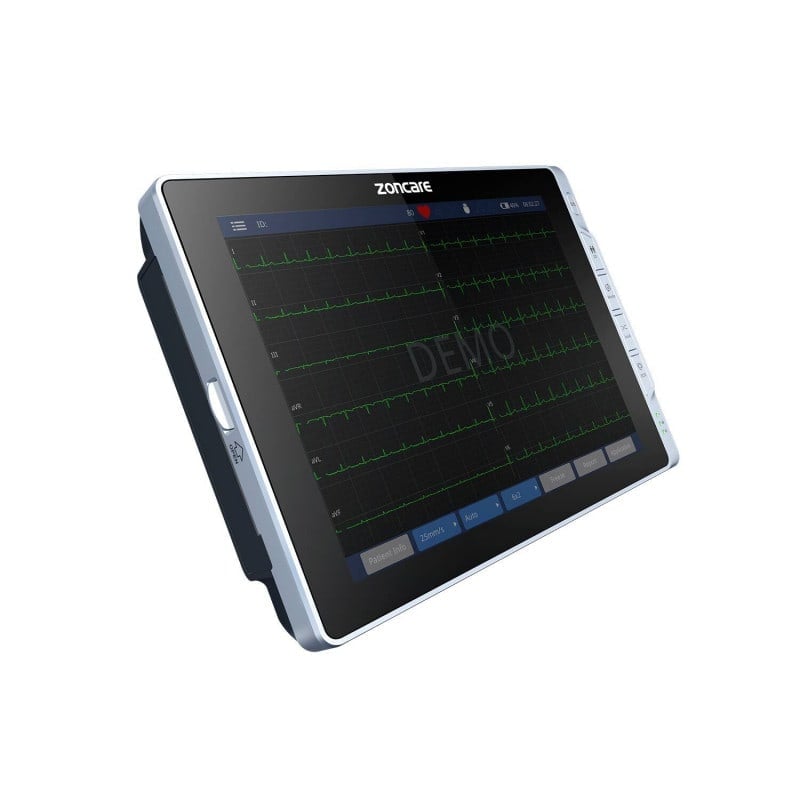

The iMAC 12 PRO ECG tablet from Zoncare is a compact, portable ECG machine, ideal for clinical use. Featuring a 10.4-inch colour LCD touchscreen and 12-lead synchronous acquisition and display, the device provides a user-friendly interface for easy and efficient operation. The built-in Glasgow algorithm provides precise analysis, while the four recording modes allow for flexible ECG monitoring.



The device can be powered by mains or battery and stores up to 10,000 records. It is compatible with hospital management systems and allows for quick documentation and printing via the integrated thermal printer. Weighing just 1.65 kg, it is easy to transport and simple to clean.



Product Details

  • iMAC 12 PRO from Zoncare
  • Portable ECG machine
  • 10.4-inch colour LCD touchscreen
  • 12-lead synchronous acquisition and display
  • User-friendly interface
  • Easy to operate
  • Equipped with the the Glasgow algorithm
  • Suitable for use with adults and children
  • Operation via mains power or rechargeable Li-ion battery
  • Features an integrated thermal printer
  • Includes built-in defibrillator protection
  • Supports wireless and wired network connections
  • Internal memory capacity for up to 10,000 records
  • Four recording modes: pre-recording, real-time recording, periodic recording, trigger recording
  • Clearly organised and patient-specific documentation
  • Automatic patient data capture
  • Recorded files can be transferred in various formats
  • Direct integration with hospital management systems
  • Versatile usage
  • Integrated keyboard allows input in multiple languages
  • Search function and data editing via patient records
  • External connections: USB, SD card, scanner, card reader, and LAN
  • Smart pen for handwritten data entry
  • Easy to clean and disinfect
  • Dimensions (L x W x H): 275 x 203 x 47.5 mm
  • Weight: 1.65 kg (with battery)
  • Included: 10.4-inch ECG tablet, ECG cable, battery, power cable



Technical Specifications

Display 10.4-inch colour LCD touchscreen
Resolution 1024 x 768 pixels
Weight 1.65 kg with battery
Power Supply Mains or rechargeable Li-ion battery (14.8V/1900mAh)
Leads 12 (synchronous capture)
Analysis Glasgow Algorithm
Dimensions (L x W x H) 275 x 203 x 47.5 mm
Display and Print Layout 3 x 4; 3 x 4 + 1; 3 x 4 + 3; 6 x 2; 6 x 2 + 1; 12 pro x 1; 6 x 2 + 3
Electrical Requirements and Specifications AC Power 100V-240V, 50Hz/60Hz, 75VA
Noise ≤15μV
Sensitivity 40; 20; 10; 5; 2.5; Auto mm/mV
Paper Speed 5; 6; 25; 10; 12 pro.5; 50 mm/s
Calibration Voltage 1 mV ±2%
Input Current ≤10μV
Filters AC Filter: 50Hz, 60Hz, Off
ADS Filter: 0.01Hz, 0.05Hz, 0.3Hz, 0.6Hz, Off
EMG Filter: 25Hz, 35Hz, 45Hz, 75Hz, 100Hz, 150Hz, 250Hz, 350Hz, Off
HR Range 30 - 350 bpm
Sampling Rate 32,000 samples per second
A/D Conversion 24 bits
Input Impedance ≥ 60 MΩ (10Hz)
Polarisation Resistance ±950mV ±3%
Frequency Response 0.01 ~ 350Hz
Time Constant ≥3.2S
