iMAC 300 PRO
iMAC 300 PRO
Regular price
£600.22
Regular price
£0.00
Sale price
£600.22
Unit price
/
per
Couldn't load pickup availability
Product overview
- Mobile ECG device
- Integrated thermal printer
- High memory capacity
- Simple operation
- Compact design
iMAC 300 PRO

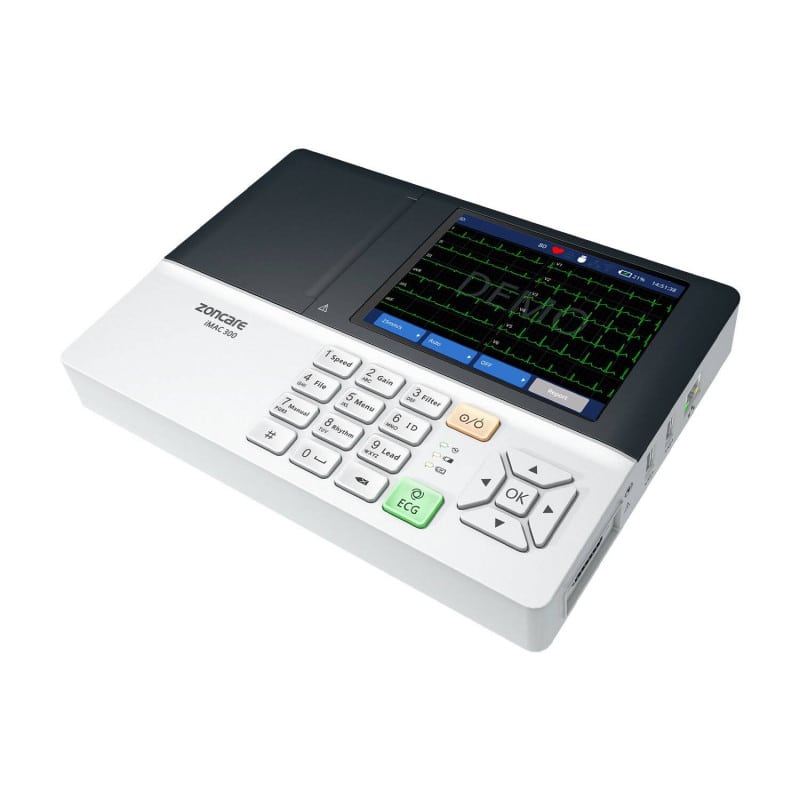

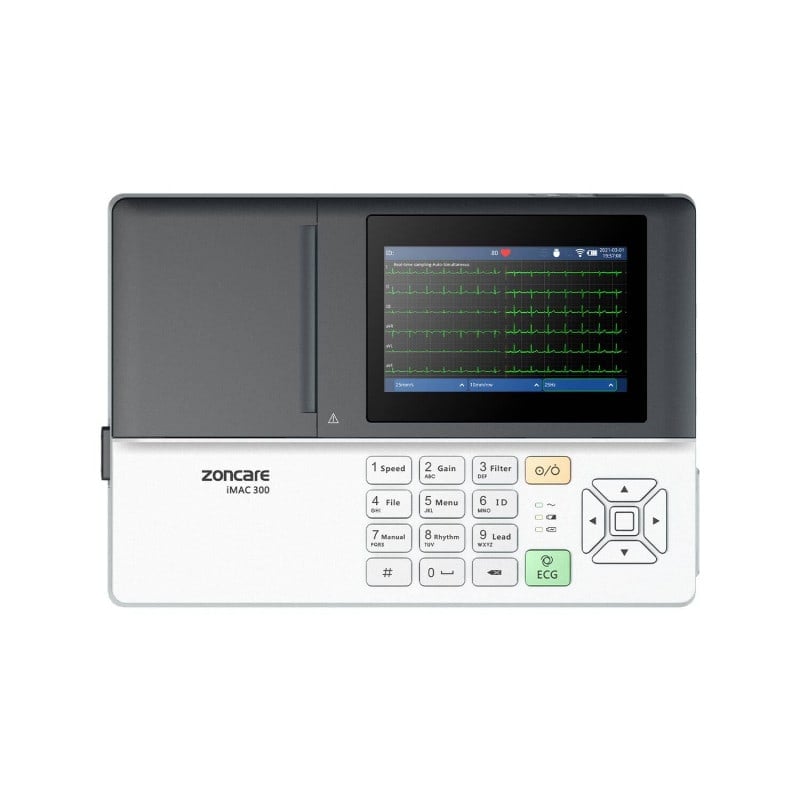

The iMAC 300 PRO from Zoncare is a versatile and precise ECG machine. It features four recording modes and an integrated thermal printer, capable of storing up to 20,000 reports, which can be easily exported via USB or SD card. With Wi-Fi and wired connectivity, data transfer to digital patient records is seamless.
The package includes the ECG tablet, ECG cables, battery and power cable, making the iMAC 300 PRO ready for immediate use right out of the box. Its compact, user-friendly design meets the demands of busy medical practices, with flexible mains and battery power options.
Product Details
- iMAC 300 PRO from Zoncare
- Portable ECG device
- 5-inch LCD display
- Simultaneous 12-lead recording
- Suitable for diagnostics in adults and children
- Supports 21 languages
- With integrated defibrillator protection
- Integrated thermal printer
- Operation via mains power or a rechargeable Li-Ion battery
- Long battery life
- Features 4 different recording modes
- Pacemaker detection
- Report templates (measurement matrix and average template)
- Alerts for bradycardia, tachycardia, lead disconnection and low battery
- Wi-Fi and wired network connectivity available
- Storage for up to 20,000 reports, which can be immediately saved to USB or SD card
- Supplied with: 5-inch ECG tablet, ECG cables, battery, power cable
Technical Specifications
| Display | 5-inch LCD display |
| Leads | 12 |
| Interfaces | 2 USB ports, LAN connections, integrated SD card slot (allows connection of additional accessories) |
| Power Supply | AC power: 100V - 240V, 50Hz/60Hz, 75 VA Rechargeable Li-Ion battery 10.89V/2600 mAh (continuous use of over 7 hours) |
| Sampling Modes | Real-time sampling, Pre-sampling, Triggered sampling |
| Algorithm | Glasgow |
| Recording and Analysis | Pacemaker detection, Minnesota code, automatic measurement, R-R histogram and diagram |
| Network | Wi-Fi and wired network connectivity |
| Data Transfer | FTP, DICOM, HTTP, and Samba protocols |
| Report Formats | ZQECG, JPG, PDF, PNG, XML, HL7, DICOM-JPG, DICOM-PDF, DICOM-WAVEFORM |
| Storage | Local storage of up to 20,000 reports |
| Sampling Rate | 32,000 samples per second |
| A/D Conversion | 24 Bit |
| Input Impedance | ≥60 MΩ (10Hz) |
| Frequency Response | 0.01 - 350 Hz |
| Filter Settings | AC filter, baseline drift, EMG filter |
| Calibration Voltage | 1 mV ±2% |
