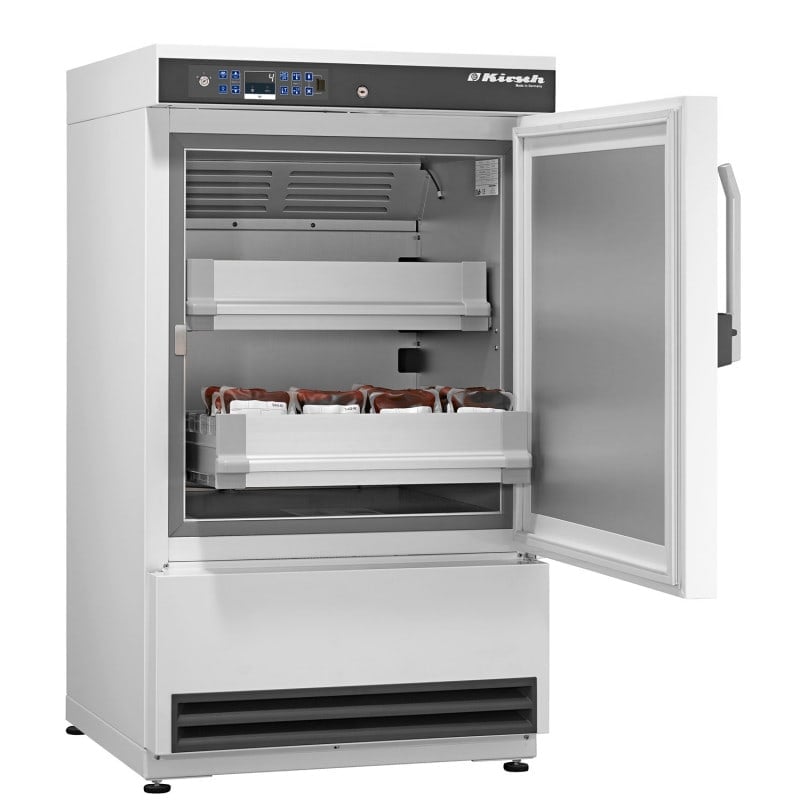

KIRSCH Blood Bank Refrigerator BL176

• With innovative PRO-ACTIVE control
• Permanent monitoring of performance data
• Energy-saving and extra thick insulation
• Uniform temperature, low temperature gradients
• Visual and acoustic alarm function

KIRSCH Blood Bank Refrigerator BL176

The KIRSCH BL176 blood bank refrigerator complies with DIN 13485 and DIN 58371, is used for the safe cooling of blood banks at a constant temperature and is particularly energy-saving. On the front-mounted membrane keypad with digital temperature display, you can check current levels at any time, while the max/min temperature memory ensures secure data documentation. This is not only extremely reliable, but also saves the technical staff the time-consuming and manual documentation.

The integrated PRO-ACTIVE control ensures permanent and proactive monitoring of all performance data. Even the slightest deviation triggers an automatic alarm. An integrated recirculating air cooling system, which is automatically switched off when the door is opened, promotes uniform temperature control and reduces temperature gradients in the interior of the KIRSCH refrigerator for blood products. This way, the blood units are cooled equally regardless of their location in the refrigerator.

In the event of malfunctions or a power failure, acoustic and visual alarm signals clearly indicate the cooling deficiencies. If required, it is also possible to set up alarm forwarding via a potential-free contact, e.g. to a mobile phone with optional GSM module or connection to central control technology. Thus, you can receive notifications of alarms when you are on the move.

Product Details

• KIRSCH Blood Bank Refrigerator BL176
• Compliant with DIN ISO 13485 and DIN 58371
• With innovative PRO-ACTIVE control
• Permanent, proactive monitoring of performance data
• Immediate alarm in case of deviations
• Precise temperature control thanks to two standard PT-1000 sensors
• Outer casing made of galvanised sheet steel (rust-protected)
• With white, scratch-resistant powder coating
• Length of the plug cable approx. 2.8 m
• Adjustable feet in the front area to compensate for unevenness
• Interior made of smooth aluminium with colourless protective coating
• 2 aluminium drawers on fixed roller runners with locking device
• Drawer stacking height 23 cm
• Energy-saving, strong 70mm insulation made of pressure-foamed material
• Lockable door with replaceable plastic magnetic sealing frame
• Door hinge can also be changed at a later date (with right-hand hinge as standard)
• With convection cooling, switches off automatically when the door is opened
• Uniform temperature control and reduction of the temperature gradient
• Automatic defrost with thermal monitoring and time limit
• Condensation evaporation in the refrigeration machine room
• Electronic and tamper-proof temperature control (key switch)
• Membrane keypad with digital temperature display & min./max. temperature memory
• Warning function with visual & acoustic alarm in case of malfunction/power failure
• Door opening alarm after 60 seconds
• Alarm forwarding possible via potential-free contact
• Data documentation can be read via USB interface
• Integrated freeze protection against minus temperatures
• Statically ventilated refrigerating machine, hermetically encapsulated, vibration-free mounting
• Easy-to-clean ventilation grille
