KIRSCH Blood Bank Refrigerator BL720 ULTIMATE

KIRSCH Blood Bank Refrigerator BL720 ULTIMATE

£14,287.94
£0.00 £14,287.94
Sale Sold out
Version
Product overview
  • Permanent monitoring of performance data
  • Medical device compliant with DIN ISO 13485
  • Equipped with four robust castors
  • Energy-saving insulation (70 mm)
  • Uniform temperature regulation in the interior

KIRSCH Blutkonserven-Kühlschrank BL720

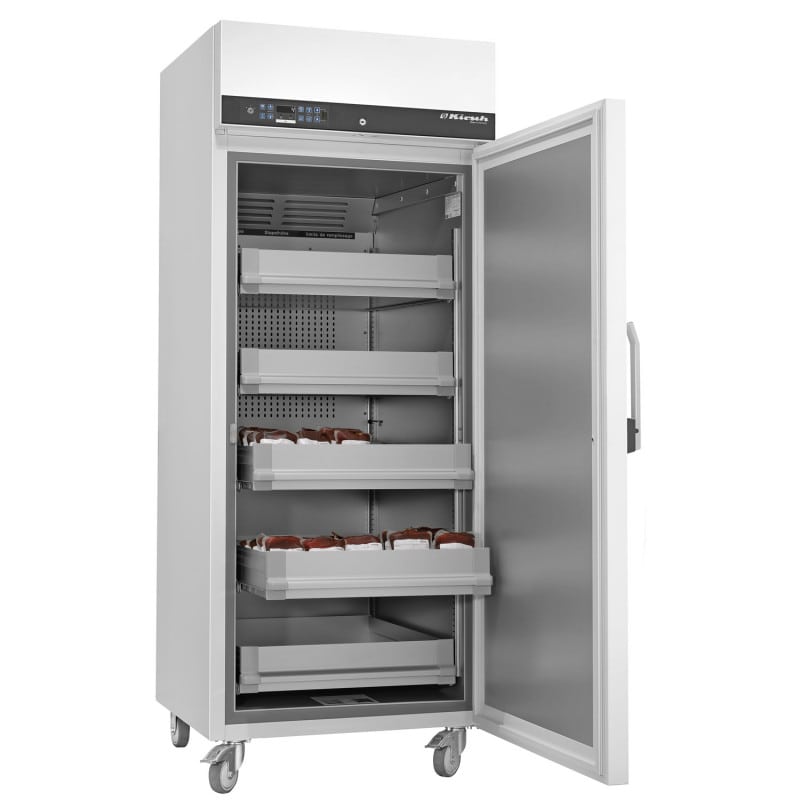

The energy-saving KIRSCH BL720 Blood Bank Refrigerator enables permanent and proactive monitoring of all performance data thanks to the innovative PRO-ACTIVE control system, thus ensuring safe cooling of blood banks at a constant temperature. To move the refrigerator flexibly and easily, it is equipped with four robust castors. Its interior is lined with smooth aluminium with a colourless protective coating. To ensure that the five aluminium drawers, which offer plenty of storage space for blood units, can be used variably and as needed, the interior has height-adjustable roller drawer runners with locks.


Efficient recirculating air cooling inside the refrigerator ensures an even temperature and minimises temperature gradients. Temperature regulation works electronically and is tamper-proof. In the event of deviations, e.g. due to malfunctions or power failure, both a visual and an acoustic alarm indicate the cooling malfunctions. If required, there is the option of alarm forwarding, which enables notification of alarms even from a great distance. The KIRSCH Blood Bank Refrigerator is available in either PRO-ACTIVE or ULTIMATE version.


Product Details

  • KIRSCH Blood Bank Refrigerator BL720
  • Permanent monitoring of performance data thanks to PRO-ACTIVE control
  • Medical device compliant with DIN ISO 13485
  • Meets the requirements of DIN 58371
  • Outer casing made of galvanised and rust-protected sheet steel
  • With white, scratch-resistant powder coating
  • Length of the plug cable approx. 3 m
  • With four robust castors for flexible use
  • Interior made of smooth aluminium with colourless protective coating
  • Adjustable slats (15 mm grid) for interior fittings to suit requirements
  • With 5 height-adjustable drawers made of aluminium
  • Drawers on roller runners with locking device
  • Energy-saving insulation (70 mm)
  • Lockable and self-closing door
  • Door hinge can be changed at any time (from factory on the right)
  • Recirculating air cooling ensures uniform temperature regulation
  • Reduction of the temperature gradient in the interior
  • Automatic rapid defrosting through thermally monitored reversal of the refrigerant circuit
  • Condensation evaporation in heated stainless steel tray
  • Electronic and protected temperature regulation
  • Warning function with acoustic & visual alarm
  • Adjustable alarm forwarding
  • Protection against sub-zero temperatures
  • Forced-air chiller, hermetically sealed and energy-saving
  • Quiet fan reduces noise emission to approx. 40 dB

Differences Between PRO-ACTIVE and ULTIMATE


 PRO-ACTIVE ULTIMATE
Display Membrane keypad with digital temperature display and min./max. temperature memory. Capacitive touch display in elegant glass design. Graphic display of the temperature curve and the min./max. temperature.
Temperature Regulation Protected by key switch. Protected by RFID/password.
Alarm Forwarding Via potential-free contact (e.g. on mobile phone with GSM module or connection to central control technology). Via network and potential-free contact (e.g. connection to central control technology).
Data Documentation Reading via USB interface using a USB stick and KIRSCH Datanet software.   Digital - can be read via network (PC-KIT-NET) and KIRSCH Datanet software.
Access Control
 No. Yes - with protocol function.
Warning Function
 Visual and acoustic alarm signal. Visual and acoustic alarm signal. In the event of a power failure, the monitoring unit remains in operation for approx. 30 h thanks to the rechargeable battery.


Technical Specifications

  • Capacity: 700 litres
  • Temperature setting: +4 °C
  • Voltage: 220 - 240 V, 50 Hz
  • Power input: 250 watts
  • Standard consumption: 1.56 kWh/24 h
  • Permissible ambient temperature: +10 °C to +38 °C
  • Heat output (max.): 554 watts
  • Outer dimensions (incl. wall clearance & door handle): 77 x 98 x 195.5 cm (W x D x H)
  • Inner dimensions: 62 x 77 x 140 cm (W x D x H)
  • Outer dimensions with door open 90°: 77 x 166 cm (W x D)
  • Light drawer dimensions: 56 x 60 x 10 cm (W x D x H)*
  • Maximum load per drawer: 50 kg
  • Weight: net 164 kg, gross 190 kg*
