KliniMark Clip

• For percutaneous marking in soft tissue
• Puncture cannula and preloaded, three-dimensional marker
• Omega-shape ensures a secure hold
• Smooth tissue insertion
• Made from implant-tested Nitinol

KliniMark Clip

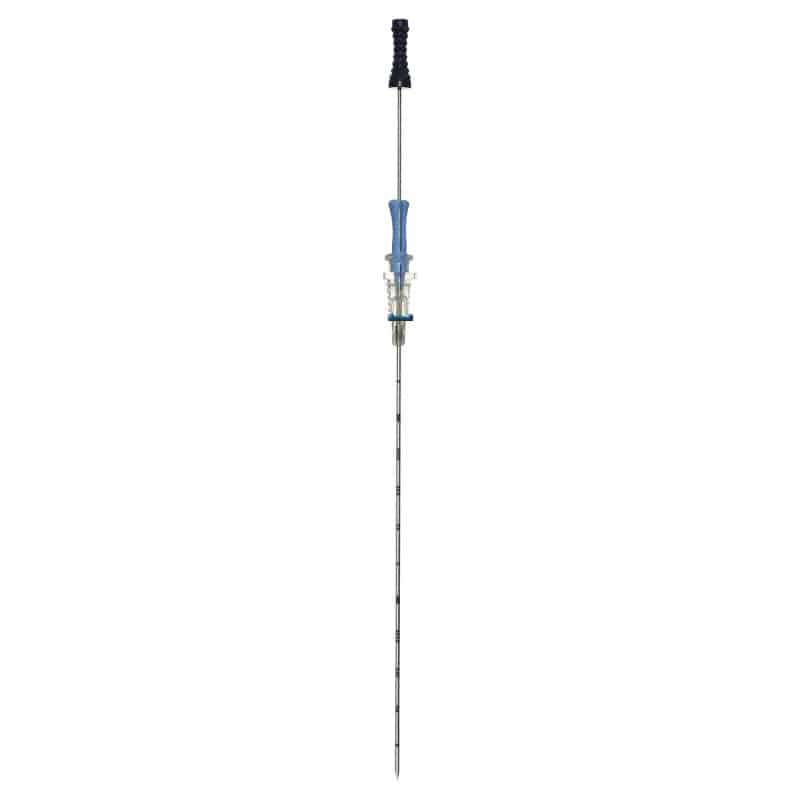

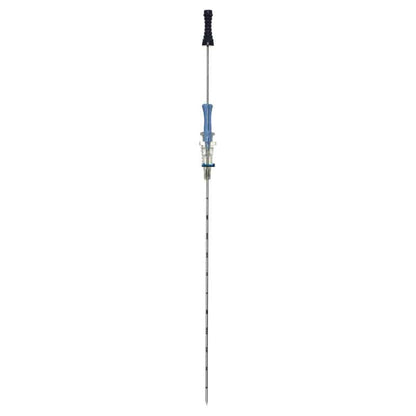

The KliniMark CLIP from Klinika Medical is a sterile, disposable product designed for precise percutaneous marking of soft tissue. It consists of a puncture cannula and a preloaded, non-absorbable Nitinol clip marker. The clip marker features an omega-shaped design. The cannula includes 1 cm space markings for accurate penetration depth and a bevelled tip for smooth tissue insertion.

It is made from implant-tested Nitinol and is characterized by its three-dimensional structure, ensuring excellent visibility in ultrasound, mammography and MRI. In addition to professional tumor marking, the KliniMark Clip can be used for efficient marking of biopsy removal or resected tumors. It is also ideal for preoperative tissue marking.

Product Details

• KliniMark Clip by Klinika Medical
• For percutaneous marking in soft tissue
• Consists of a puncture cannula and preloaded three-dimensional marker

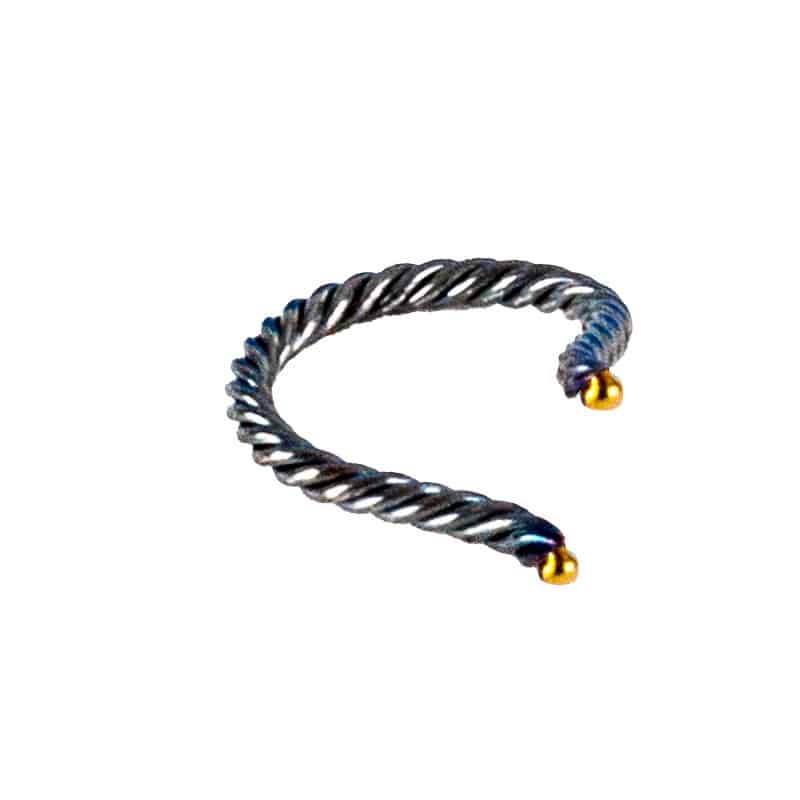

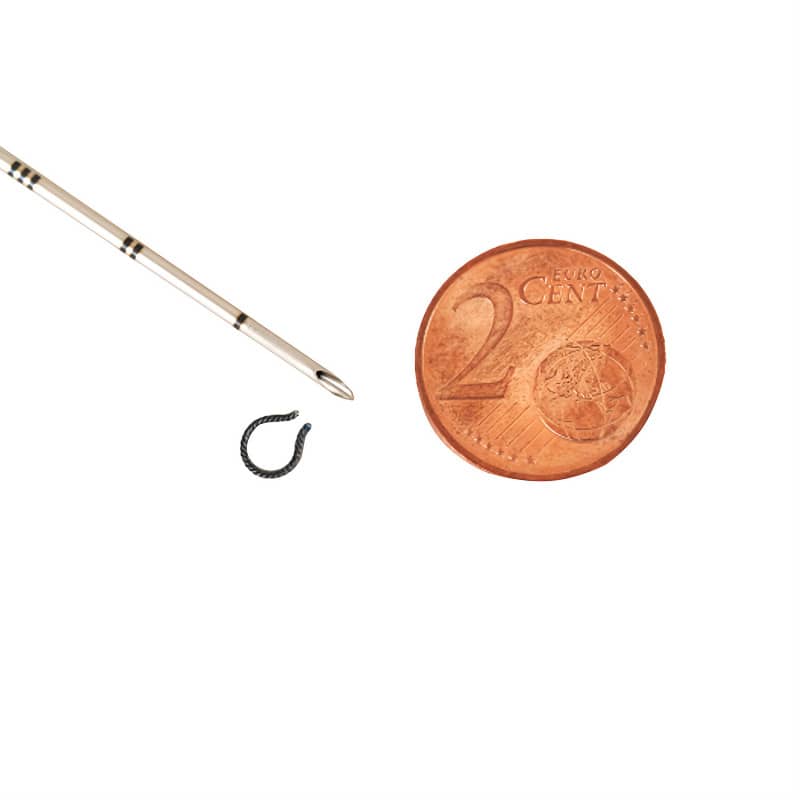

• Clip marker in Omega-V shape measuring 5.9 x 2.1 mm, diameter 4.5 mm

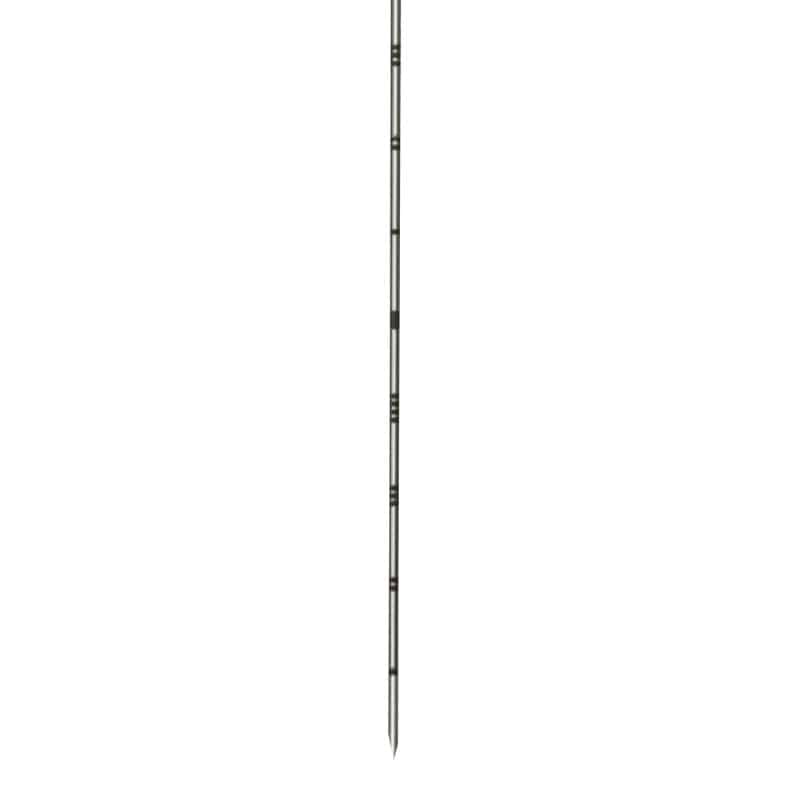

• Cannula needle (18G, 12 cm long) with bevelled top and 1 cm spacing markings
• Three-dimensional structure for maximum visibility in ultrasound, mammography, and MRI
• Omega shape ensures secure tissue grip
• Smooth tissue insertion
• Made from implant-tested Nitinol
• Used for tumor marking and provides superior orientation
• For marking breast tissue and lymph nodes
• For marking biopsy removal or resected tumors
• Usable before and after radiotherapy and chemotherapy
• Also suitable for preoperative tissue marking
• Designed for long-term use

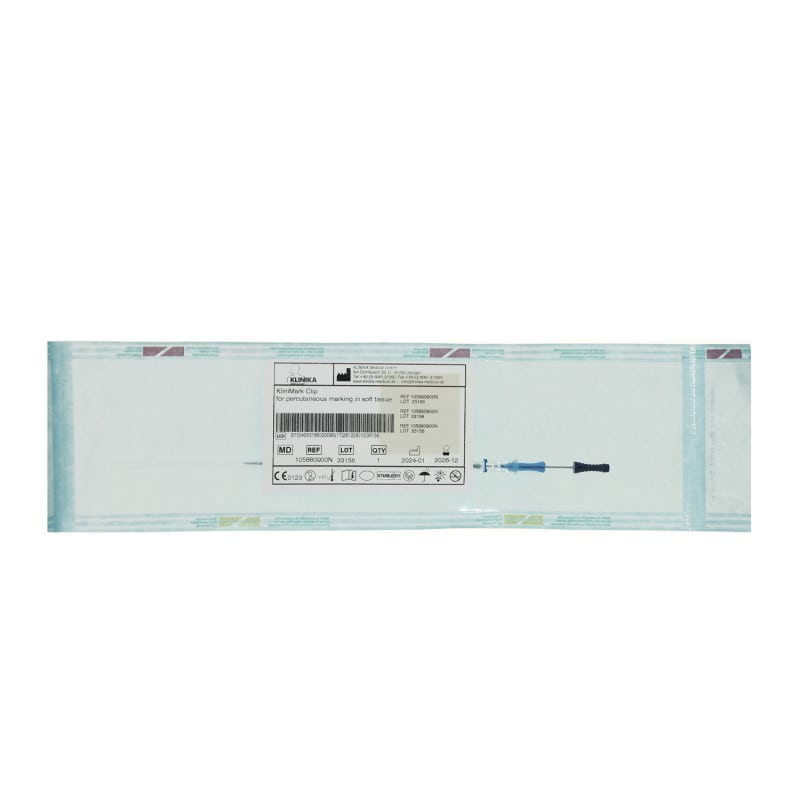

• Sterile single-use product, individually packaged
• Intended for use by medical professionals only*
• 2 x 5 pieces

Operation

The preloaded, non-magnetic Nitinol CLIP is placed in the area to be marked through a cannula (18G). By removing the spacer, the CLIP is pushed into the tissue. Nitinol is clearly visibly on ultrasound and x-ray images. Under an imaging procedure, such as mammography or ultrasound, the target area is punctured with the cannula. The marker is placed by removing the spacer on the stylet and pushing the stylet forward. The position of the marker is documented. Then the cannula is removed. It is helpful to mark tumours or other areas in this way so that they can be relocated or observed (e.g. in neoadjuvant therapy). Due to its shape (omega V), the KliniMark Clip is easy to relocate three dimensionally.

Contraindications

• Nitinol is a nickel-titanium alloy and should therefore, in the case of a known, pronounced nickel allergy, only be used after a doctor‘s recommendation.
• The marker must not be used on the heart, central nervous system or central circulatory system.
• The cannula is not MRI capable and must not be placed under MRI. The Clip is made of Nitinol, Nitinol is MR-compatible, there isn o data available for this product.
• The product must not be used on children, pregnant women or breastfeeding women.

*The KliniMark CLIP should only be used by qualified physicians who have sufficient experience and expertise in the percutaneous marking of soft tissue.
