Mortara ELI™ 230 wireless

Mortara ELI™ 230 wireless

£1,866.36
£0.00 £1,866.36
Sale Sold out
Variant
Product overview
  • Allows recording of 3-, 8- or 12-lead ECGs
  • Gender- & age-specific criteria for evaluation
  • Best 10 automatically analyses the ECG signal and noise
  • 40,000 samples per second and channel

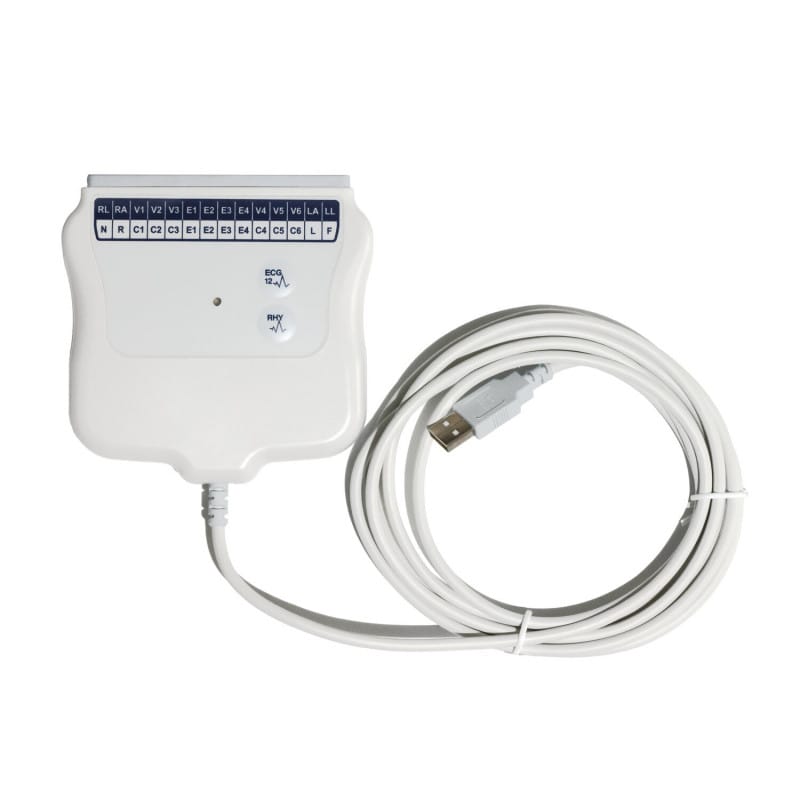

  • Wired (AM12) or wireless (WAM) available

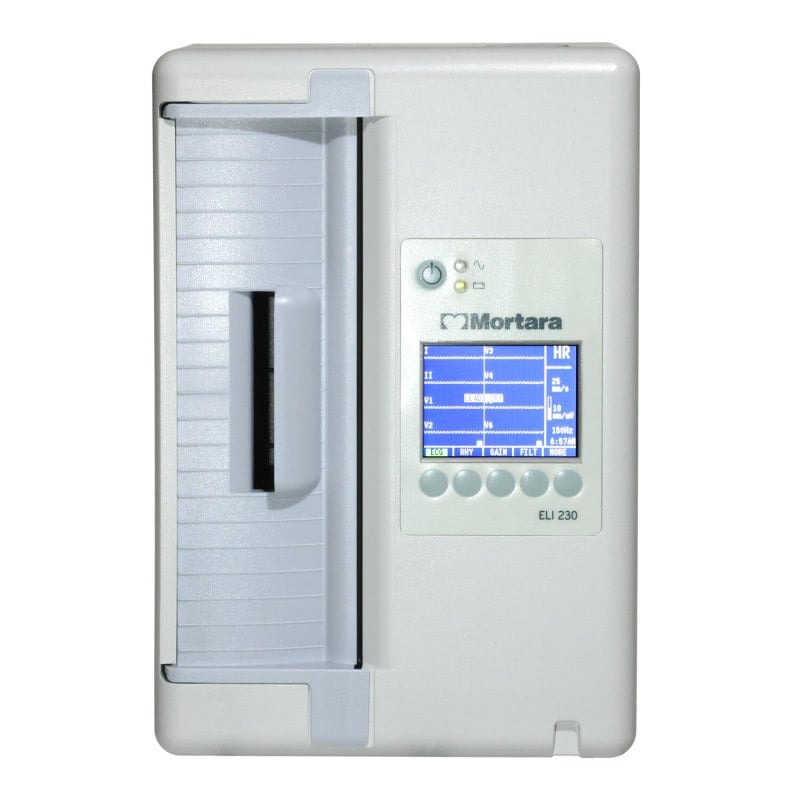

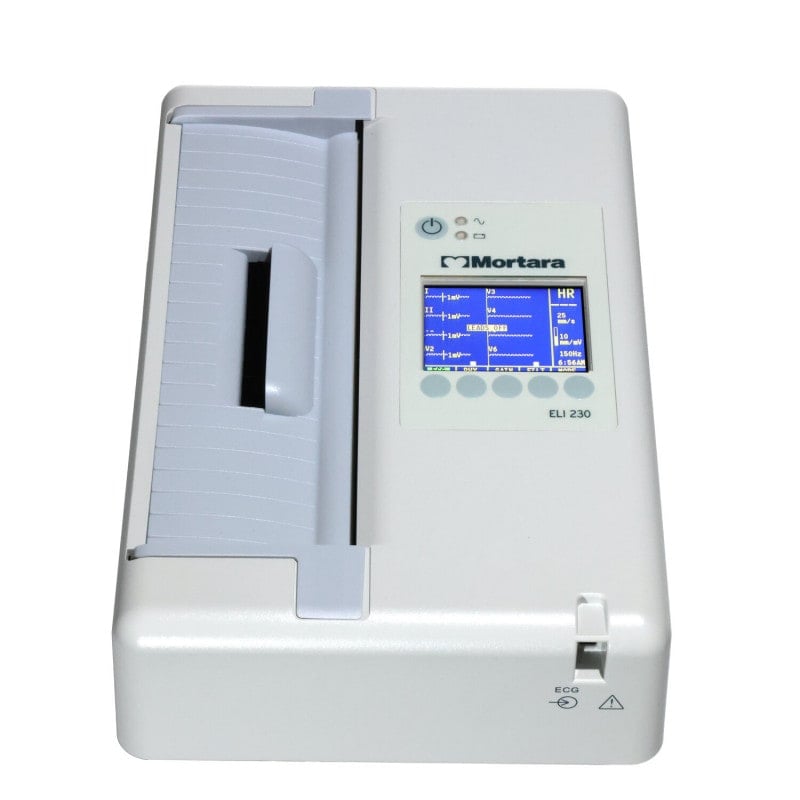

Mortara ELI™ 230

The Welch Allyn Mortara ELI™ 230 is a portable, precise and compact electrocardiograph used for acquiring, viewing and printing of adult and pediatric 12-lead ECG data. Its high-resolution colour LCD provides real-time preview of  3-, 8- or 12-lead ECG data, as well as post-acquisition review of acquired ECG. The user-friendly interface allows easy integration of the ECG process into workflows. Equipped with the advanced VERITAS algorithm, which utilises gender- and age-specific criteria for interpreting resting ECGs, the device delivers accurate and reliable results.



The Best 10 function automatically analyses the ECG signal and noise, selecting the 10 seconds of the best signal quality to reduce repetitions and optimise workflow. The device supports either wired (AM12 module) or wireless (WAM module) leads, with the wireless option providing maximum mobility for the user. An additional advantage of the WAM module is its bedside recording capability, eliminating the need to transport the device from bed to bed. Data collection is straightforward via the internal memory using a USB stick. The encrypted data transfer from PC to ELI Link ensures high security when handling patient data.



With an impressive sampling rate of 40,000 samples per second per channel and precise pacemaker detection, the ELI 230 meets the highest quality standards, providing ECGs of full diagnostic quality. The wireless WAM module also offers a long battery life, capable of recording up to 250 resting ECGs with normal use, making workflows in clinical settings more efficient.



Product Details

  • Mortara ELI™ 230 from Welch Allyn
  • Portable, precise and compact electrocardiograph
  • Designed for use with adults and children
  • Reliable ECG interpretation and full-size printout
  • High-resolution colour LCD for real-time and post-acquisition viewing
  • Allows recording of 3-, 8- or 12-lead ECGs
  • Easy to use with a clear user interface
  • Advanced VERITAS algorithm for interpreting resting ECGs
  • Utilises gender- and age-specific criteria for evaluation
  • Available in wired (AM12) or wireless (WAM) versions
  • Leads can be changed as needed
  • Lead error display indicates poorly placed leads
  • The Best 10 function automatically evaluates the ECG signal and noise
  • Identifies and selects the 10 seconds of data with the best quality
  • Reduces the need for ECG repetitions
  • Ensures more efficient and smoother workflows
  • High-fidelity sampling rate of 40,000 samples per second per channel
  • Delivers maximum ECG quality to users
  • Accurate pacemaker detection
  • Includes remote control for ECG capture and rhythm printout
  • Easy data transfer via USB
  • ELI Link enables encrypted data transfer from PC in various formats
  • Can be used with battery or mains power
  • Manufacturer's warranty: 24 months



Wireless WAM Module

  • Offers users convenient patient access and maximum mobility
  • Size and weight comparable to traditional wired patient cables
  • ECG capture can be initiated as needed on the ECG device or WAM module
  • Easy ECG capture directly at the bedside (quickly toggled on/off with a button)
  • No need to transport the ECG device from bed to bed
  • Delivers ECGs of full diagnostic quality with a sampling rate of 40,000 samples per second per channel
  • Fast and accurate pacemaker detection
  • Reduces artefact sources by eliminating the cable
  • The battery-operated WAM module can record up to 250 resting ECGs with normal use
  • An automatic shut-off feature when not in use further reduces power consumption



Language Options

English, German, Portuguese, Swedish, Turkish, Chinese, Italian, Finnish, Dutch, Hungarian, Croatian, Japanese, Spanish, French, Polish, Czech, Romanian, Russian



Technical Specifications

Standard Leads Recorded I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
Waveform Display Backlit, 1/4 VGA 320 x 240 LCD colour display, showing 4+4 or 6+6 leads
Sampling Rate 40,000 samples/second per channel for pacemaker detection
1,000 samples/second per channel for recording and analysis
Resolution 1.875 microvolt LSB
A/D Conversion 20-bit
Frequency Response 0.05 to 300 Hz
Filters High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filter at 40 Hz, 150 Hz, or 300 Hz
Lead Reversal Detection Notification of possible lead reversal conditions for both limb and
chest leads, displayed before printing
Pacemaker Spike Detection Markings for pacemaker spikes in both atrial and ventricular rhythms on the prints
Paper Thermal paper rolls; 210 mm wide
Thermal Printer Computer-controlled dot array; 8 dots/mm
Print Speed 5, 10, 25, or 50 mm/s
Gain Settings 5, 10, or 20 mm/mV
Report Formats Standard or Cabrera; 12, 6, or 3+1 channels
Export Formats XML, via ELI Link: PDF, DICOM, HL7
Rhythm Print Formats 12, 6, or 3 channels with configurable lead groups
Device Classification Class I, Type CF defibrillation-proof parts
ECG Storage Internal memory for up to 20 ECG recordings; external storage on USB stick
Connectivity Review or print via ELI Link V3.1.x
Weight 2.63 kg including battery (without paper)
Dimensions 28.58 x 19 x 7 cm
Power Supply Universal power supply (100-240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery



Delivery Contents

  • Mortara ELI® 230 ECG
  • Veritas™ interpretation algorithm for adults and children
  • 200 ECG patient storage

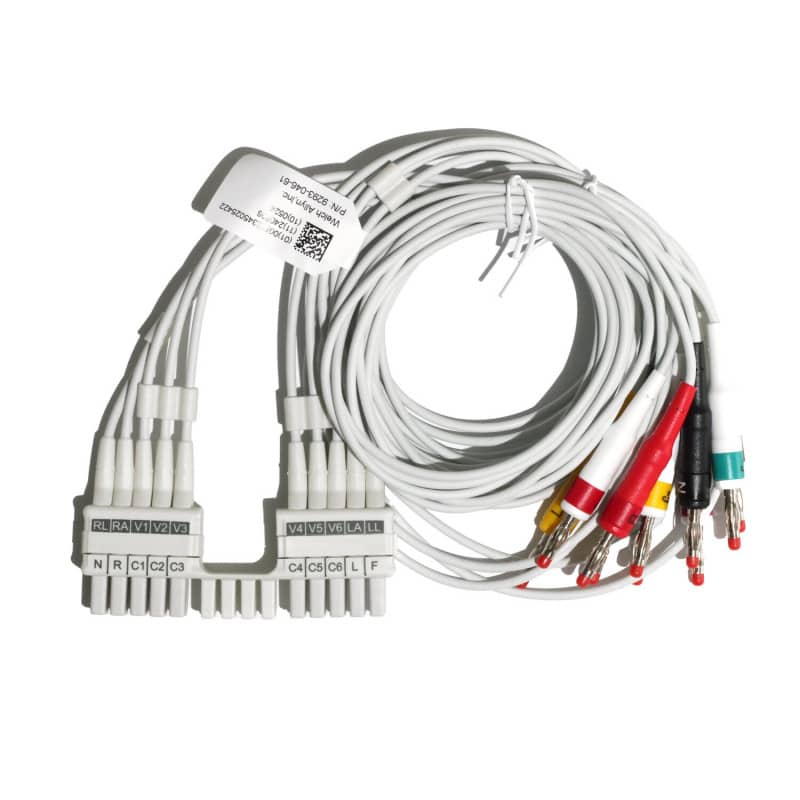

  • Patient cable module compliant with IEC standard with banana plugs
  • 1 pack of ECG paper
  • User manual
  • Starter kit with clip adapters (10x) and disposable electrodes (100x)
