Neo ECG T180
Neo ECG T180
Couldn't load pickup availability
- 10.1 inch colour touch screen with 1280 x 800 resolution
- Camera and printing dock included
- Slimline design
- Battery life up to 10 hours
- WiFi compatible
Neo ECG T180

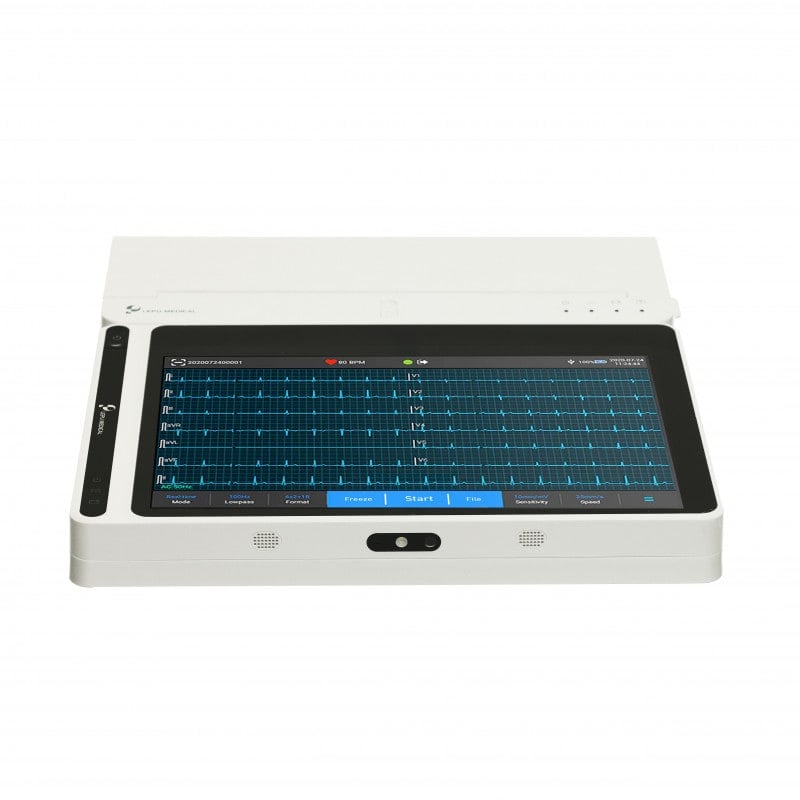

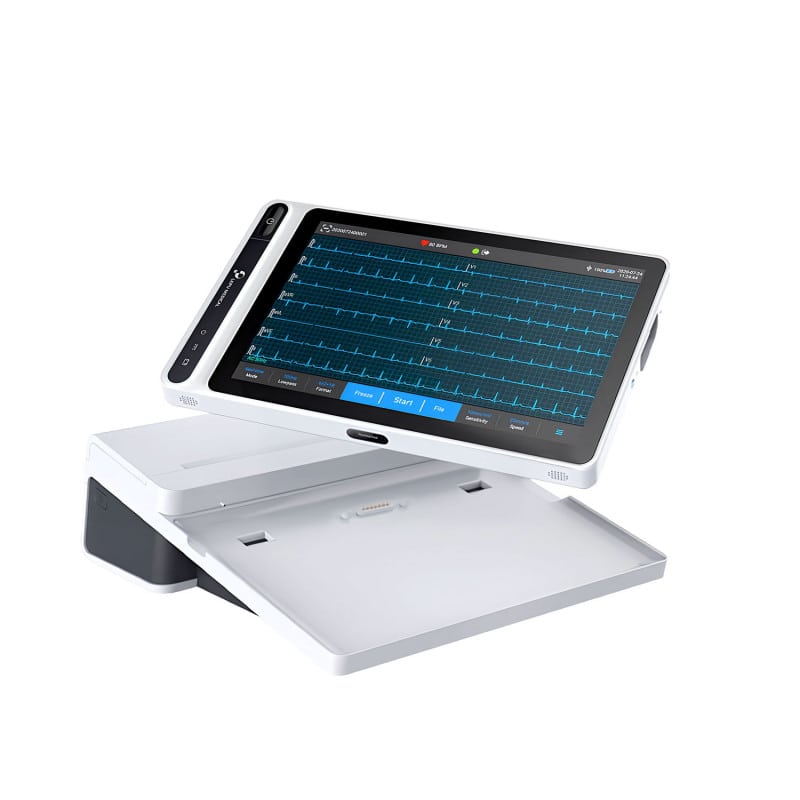

The Neo ECG Tablet T180 with a 10.1-inch touch screen and integrated printing dock is ideal for ambulatory ECG monitoring. The high-resolution touch screen with 1280 x 800 pixels ensures clear visualisation of ECG data, facilitating ease of operation. The integrated camera also allows effortless scanning of barcodes, contributing to convenient patient data input.
The device not only supports 9/12/15/18-lead waveforms but also ensures reliable heart rate detection. Using an AI-based ECG algorithm, it enables automatic analysis that provide precise diagnostic results. Additional features such as pacing detection and an anti-drift system enhance the quality of the diagnosis. Patient data input is also simple and convenient – whether via the virtual alphanumeric keyboard or barcode scanning. With wireless transmission via WiFi and mobile networks, the device allows seamless data communication. Reports can be output in various formats (Carewell ECG, PDF, BMP, HL7, DICOM, SCP).
Product Details
- Neo ECG T180 from Lepu Medical
- 12-lead heart monitor with printing dock
- Android operating system
- 10.1-inch tablet with a resolution of 1280 x 800
- Slimline with a thickness of less than 2.7 cm and a weight of 1.5 kg (without docking station)
- Integrated camera for scanning patient data
- Full keyboard for patient information input
- Operates via external DC power supply or internal rechargeable lithium battery
- Simultaneous recording and display of waveforms in channels 9, 12, 15, and 18, as well as heart rate detection
- Impressive battery life of up to 10 hours
- Automatic pacing detection and marking
- File output formats, including Carewell EKG, PDF, BMP, HL7, DICOM, SCP

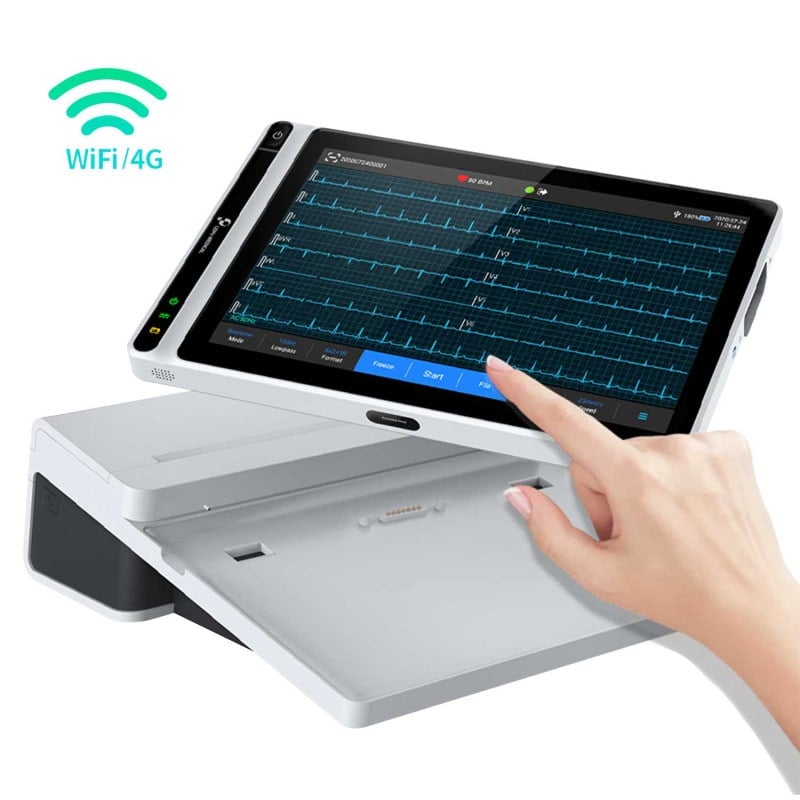

- Wireless data transmission via WiFi and mobile networks
- Equipped with a rechargeable lithium battery
- Enables online and offline logins on the device, displays historical patient data according to the login account
- Automatic data storage function when reports are printed
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling
- Includes a USB port

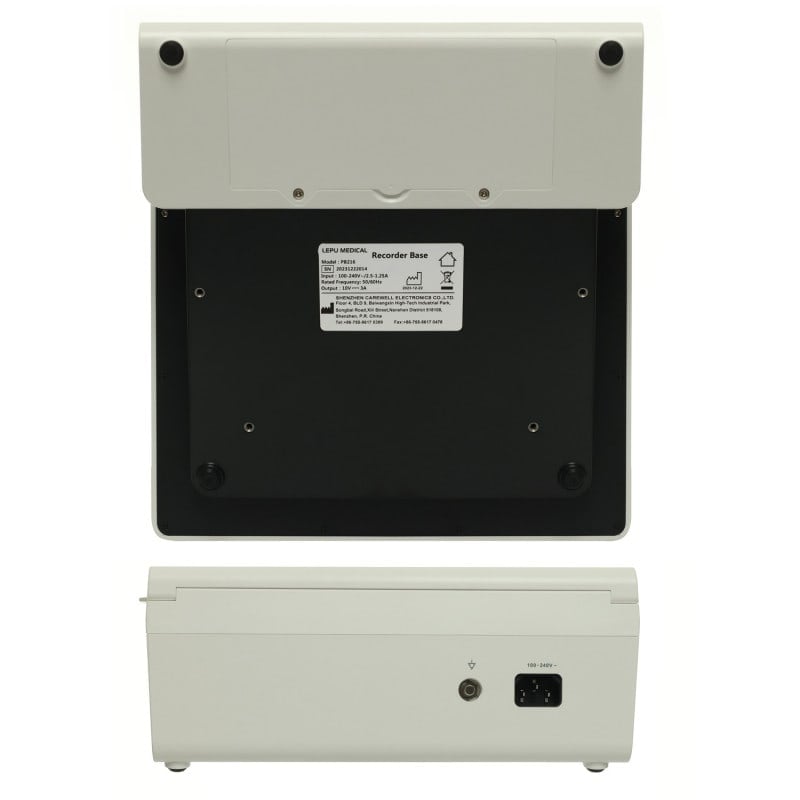

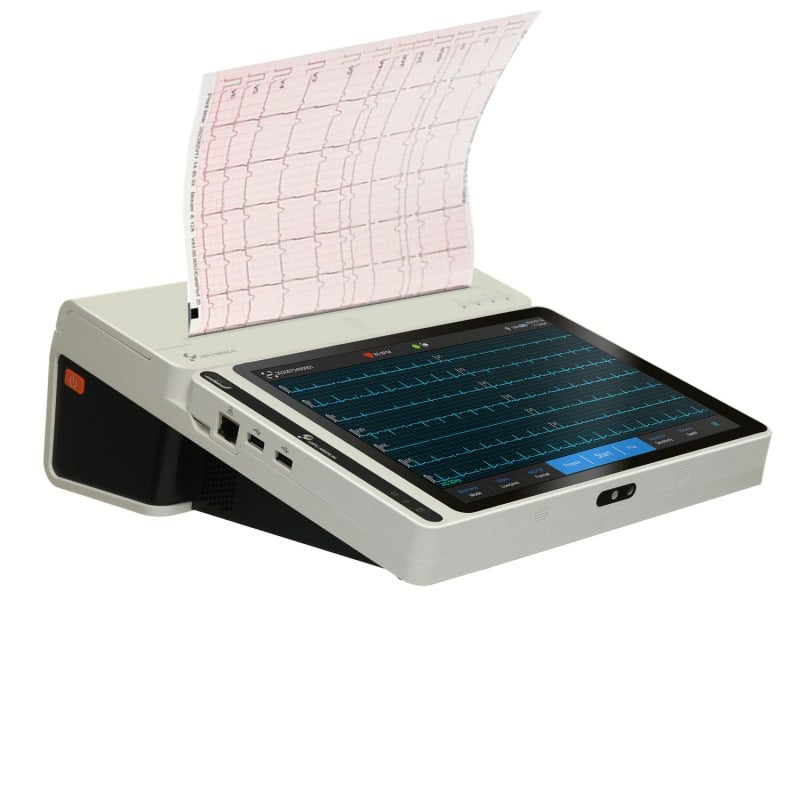

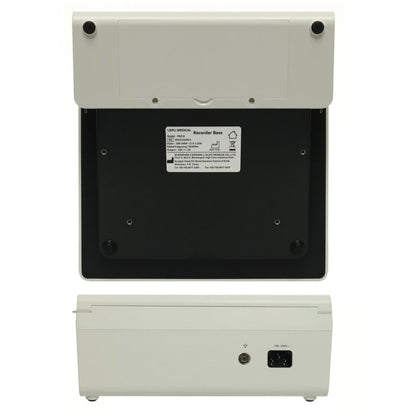

- Base with built-in thermal printer
- Device colour: white
- Tablet Size (L x B x H): 272.6 x 181.2 x 25.8 mm
- Tablet Weight: 1.2 kg

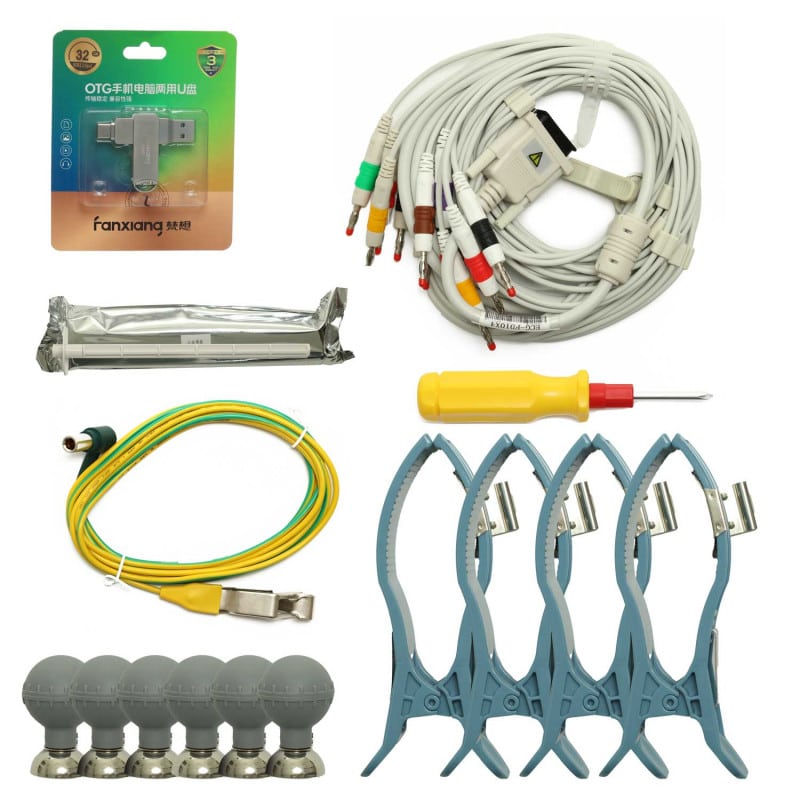

- Delivery contents: 10-inch ECG tablet, printing dock, ECG cable, chest electrodes, limb electrodes, battery, power cable
Technical Details
| Display | 10.1-inch colour touch screen |
| Resolution | 1280 x 800 pixels |
| Tablet Size (L x B x H) | 273 x 182 x 40 mm |
| Tablet Weight | 1.2 kg (including main unit and battery) |
| Power Supply | Rechargeable lithium-ion battery |
| Operating Mode | Continuous operation |
| Sampling Rate | 32,000 dots/s |
| Lead | 12-lead |
| Paper Driving Rate | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s Less than ±3% error |
| Analysis Algorithm | Glasgow |
| HR Range | 30 - 300 bpm |
| Accuracy | +1 |
| Input Impedance | ≥100MΩ (10Hz) |
| Input Loop Current | < 10nA |
| Calibration Voltage | 1mV +2 % |
| Depolarization Voltage | ±900mV, ±5% |
| System Noise | ≤ 12.5μV |
| Amplitude Quantification | 0.95 μV / LSB |
| A/D Conversion | 24-bit |
| Common Mode Rejection Ratio (CMRR) | ≥140dB (AC filter on) / ≥120dB (AC filter fff) |
| Time Constant | > 5s |
| Sensitivity | Auto, 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 40mm/ mV, less than ±5% error |
| Frequency Response | based on 0.01 HZ ~ 350 HZ (+0.4dB - 3.0 dB) |
| Filters | AC Filter 50Hz, 60Hz, Off EMG Filter: 25Hz, 35Hz, 45Hz, Off Baseline Drift Filter: 0.01Hz, 0.05Hz, 0.32Hz, 0.67Hz Low Pass Filter: 75Hz, 100Hz, 150Hz, 300Hz, Off |
| Electrode Polarization Recovery Time | < 10s |
| Pace Pulse Display | Display ECG signal for pacing pulses with an amplitude of ±2mV to ±700mV, a duration of 0.1 ms to 2.0 ms, a rise time of less than 100 μs, and a frequency of 100/min |
