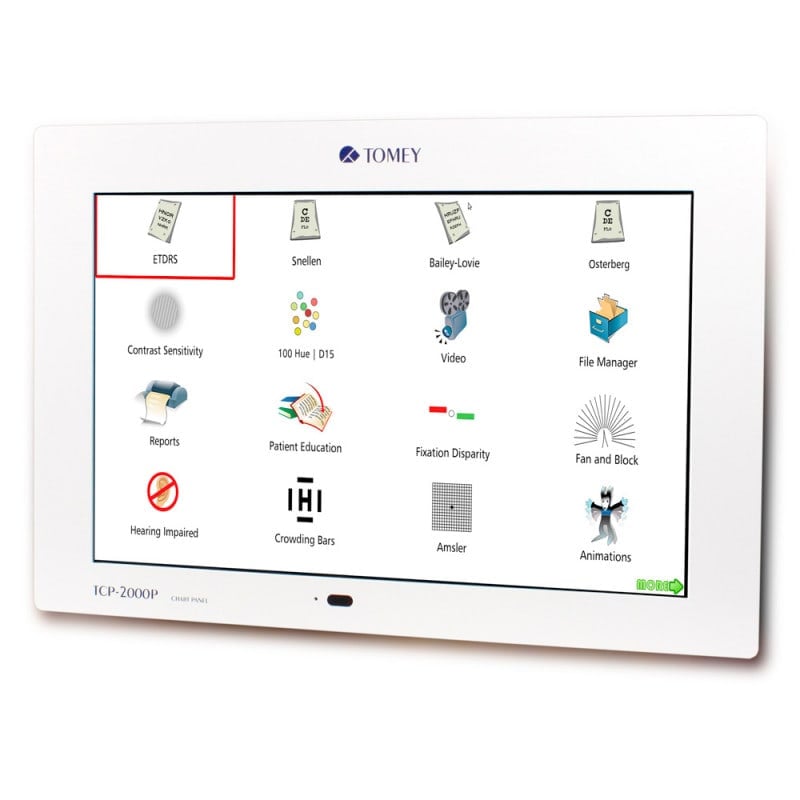

Optotype Monitor TCP-2000P

• Non-reflective LCD screen
• Contains all common tests incl. polarisation tests
• Optional: Model with driver's license or MKH tests
• 5 different optotypes selectable
• Multilingual user interface

Tomey Optotype Monitor

The Tomey optotype monitor enables digital visual acuity testing in a space-saving format and impresses with its wide range of different visual tests. The monitor offers various test procedures and enables user-friendly visual acuity testing and refraction.

Five different optotypes can be selected: Osterberg, EDTRS, low vision, cross test and "hearing impaired". The high-quality LCD screen with a non-reflective surface ensures precise and high-contrast display of the test characters. The monitor combines many tests that were previously only available individually in manual format as a digital version in one examination device. Thus, there is no need to purchase individual manuals, the monitor contains all common tests, such as Amsler, colour and contrast sensitivity tests and thus enables a particularly time-saving and user-friendly examination and refraction, regardless of the symptoms.

Depending on the model, the optotype model can also offer a driver's license test or the MKH test procedure. The driver's license test with model TCP-2000P fulfils the German legal requirements while the measurement and correction method from Hans-Joachim Haase (MKH) determines a heterophoria. The monitor can be mounted to the wall using the separately available VESA wall bracket for TCP devices.

Product Details for the Optotype Monitor

• High-quality LCD screen
• Non-reflective surface

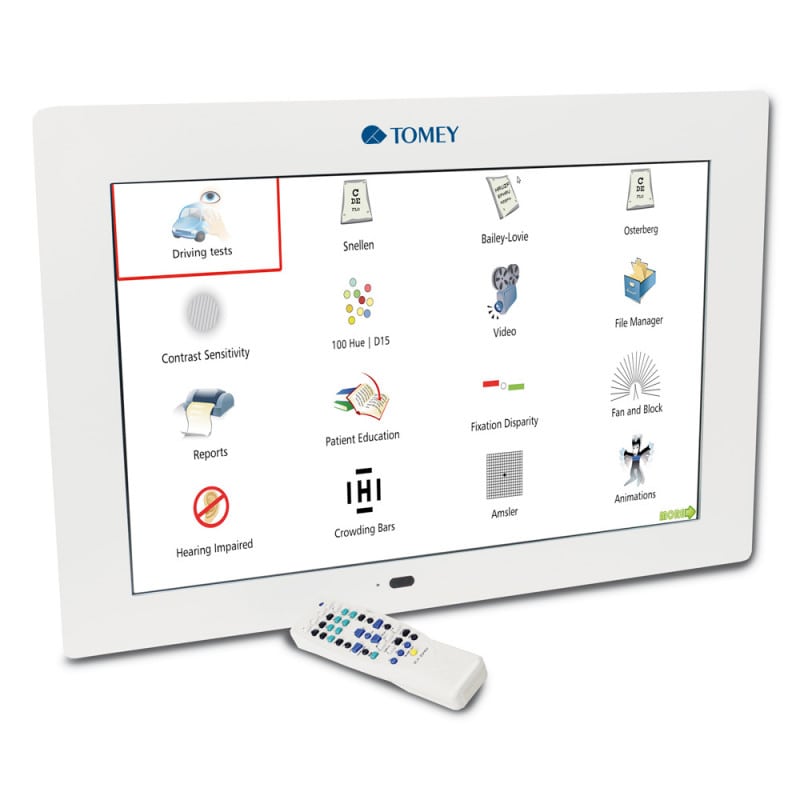

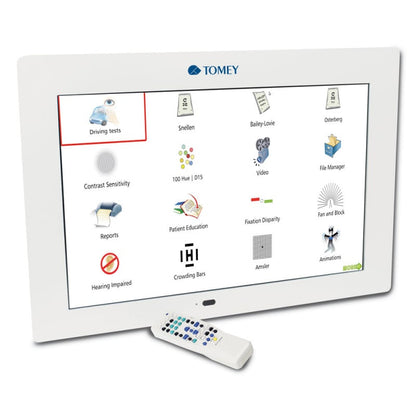

• Wireless operation with infrared remote
• Also operable with iPad via Chart Max App
• Available in 2 models
• Large selection of polarised optotypes and tests
• 5 various optotypes selectable
• Option to change optotype contrast
• Child-friendly images
• Multilingual user interface
• For simple vision and refraction testing
• Easy test procedures
• Adjustable testing distance: freely selectable between 2 m and 7 m
• iPad is not included in delivery
• Programmable automatic shutdown from 4 to 240 minutes
• USB interface
• Wall bracket for TCP devices separately available
• Manufacturer: Tomey

The Following Tests can be Administered with the Optotype Monitor

• Driver's license tests (Modell TCP-2000P)
• MCH test procedures (Modell TCP-3000P)
• Colour vision tests
• Contrast sensitivity tests
• Amsler, Schober, cross and Worth tests
• Red-green test
• Polarising tests
• Visual acuity/astigmatism point tests


The Optotype Monitor is Available in Various Models:

Delivery Contents

• TCP-2000P or TCP-3000P optotype monitor
• 1 infrared remote
• 1 power cable
• 2 AA batteries for remote
• 1 rot/green glasses
• 1 polarisation glasses
• 1 instruction manual

Order the Tomey optotype monitor as well as vision charts, measuring glasses and other products for ophthalmologists at affordable prices from Orange Medical.
