SmartTag single-use | without probe
SmartTag single-use | without probe
Couldn't load pickup availability
- Real-time temperature monitoring system
- Records location, temperature, humidity, light, shock & route
- Guaranteed 24/7 data monitoring and analysis
- Real-time e-mail alerts
- Available as a disposable or reusable system

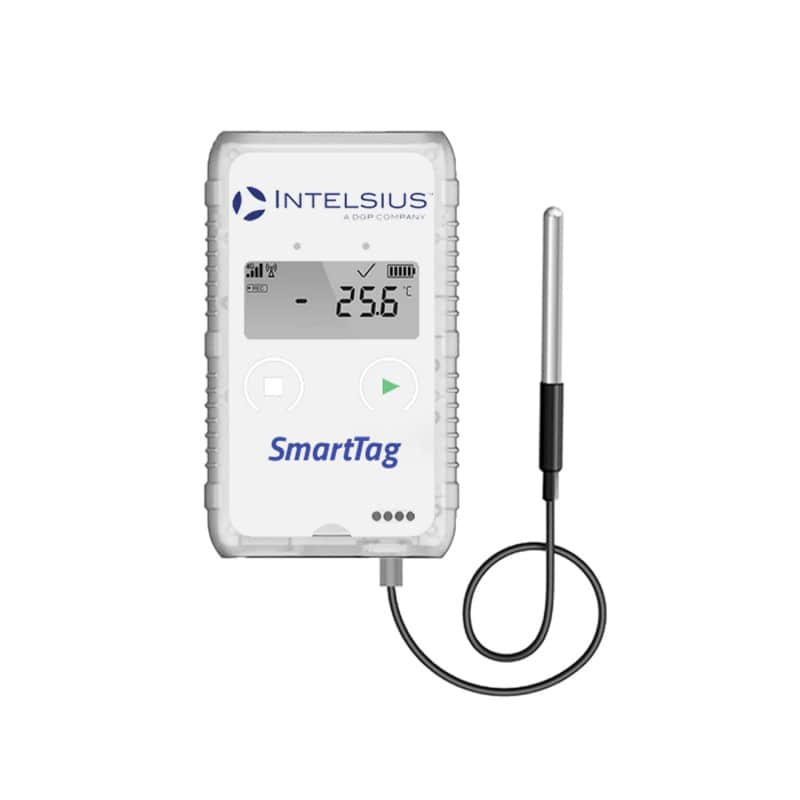

SmartTag
SmartTag is a real-time temperature monitoring system from Intelsius, specifically designed to ensure efficiency and safety in the cold chain. This innovative device allows you to monitor and track critical parameters such as location, temperature, humidity, light, shock and route. Data is transmitted directly to the ORCA Cloud, ensuring complete transparency and traceability.
The system guarantees reliable 24/7 data monitoring and analysis, making it a valuable tool for quality management. Additionally, SmartTag offers real-time email alerts, enabling promt response to deviations in recordings, helping to significantly reduce product losses. The SmartTag is available as both a single-use and reusable system and can be purchased with or without a probe as needed.
Product Details
- SmartTag from Intelsius
- Advanced real-time temperature monitoring system
- Data transmission to ORCA Cloud
- Ensures seamless cold chain traceability
- Provides complete transparency of the cold chain
- Captures location, temperature, humidity, light, shock and route
- Enhances transport efficiency and reduces product losses
- Guarantees 24/7 data monitoring and analysis
- Optimal for quality management
- Real-time email alerts
- Available as single-use or reusable system
- Can be purchased with or without probe
- Package includes: 1 unit
Technical Specifications
| Description | Details | |
|
Recording & Transmission SmartTag (Single-use) SmartTag (Reusable) |
Default setting Recording interval Transmission interval Recording interval Transmission interval |
Recording: 10 mins; Transmission: 20 mins 10/30/60 mins 20/30/60/120/240 mins 1/2/5/10/30/60 mins 10/20/30/60/120 mins |
| Schock Sensor | 3 axes: x, y, and z (1-8 g) | Factory calibrated 1-8 g; Resolution: 1 g |
| Temperatursensor | Factory calibrated | -30 °C ... 70 °C +/- 0.5 °C (-20 °C ... +40 °C) 0.1 °C resolution According to DKD-R 5-1 guideline |
| Humidity Sensor | Factory calibrated | 5 % rH to 95 % rH non-condensing +/- 3 % rH accuracy 1 % rH resolution |
| Light Sensor | Detects if box is opened | 0...52,000 lux |
| Battery | Lithium-ion battery (Reusable) Alkaline battery (Single-use) |
Up to 120 days runtime, depending on configuration |
| Casing | ABS casing SmartTag (Single-use) SmartTag (Reusable) |
103 x 61.3 x 33 mm 103 x 61.3 x 23 mm |
| Weight | SmartTag (Single-use) SmartTag (Reusable) |
300 g 140 g |
| GSM Module | Global roaming included | Global LTE 4G/5G; Fallback to 2G |
| Qualifications | Compliance | FCC, CE, RTCA/DO-160G, UN38.3, ROHS, WEEE |
| Version | IP 64 Protection | Sensor protection by membrane |
| Accessories | Dry ice probe | External dry ice probe (-78 °C) for monitoring low temperatures |
