SonoBook 8

• Digital color Doppler ultrasound system
• High-resolution 15-inch LED monitor
• State-of-the-art image processing technologies
• Fast & quiet SSD hard drive (128 GB)
• Ultralightweight: 5.4 kg

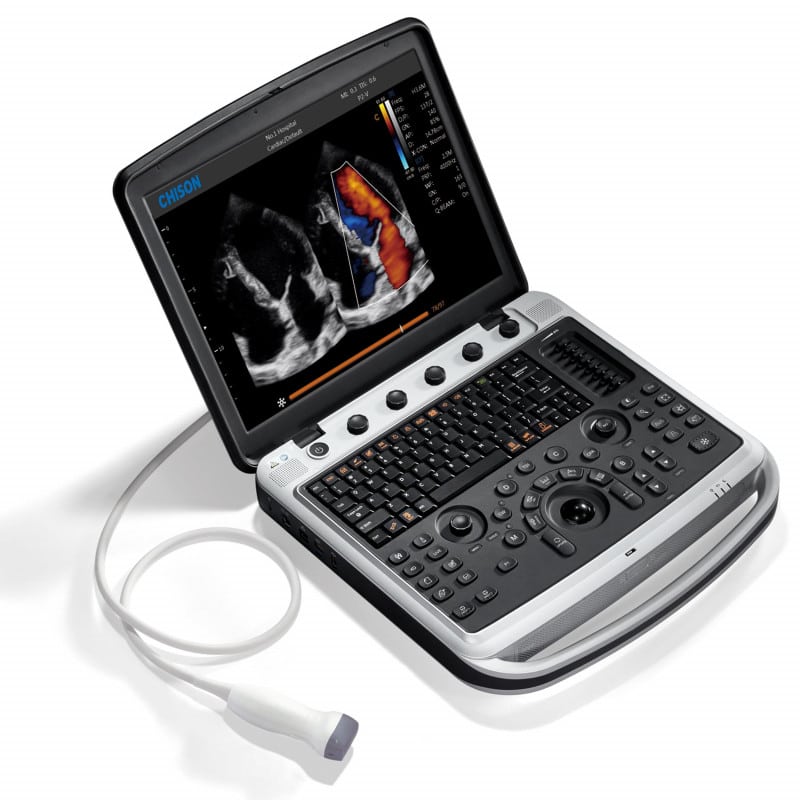

SonoBook 8

The SonoBook 8 from Chison is a digital color Doppler ultrasound system known for its performance, responsiveness, and compactness. This ultra-lightweight ultrasound device (5.4 kg including the battery) features a high-resolution 15-inch LED monitor, facilitating an intuitive workflow and responding immediately and reliably to commands, allowing the user to focus 100% on diagnostics.

The user-friendly ultrasound device is ready for use in about 1 minute, transitions from standby to operational mode within 12 seconds, and responds instantly to selecting a different mode or measurement. Film storage is completed in just 1 second, and shutdown takes only 15 seconds. The automatic ambient adaptation function also adjusts brightness automatically to individual conditions.

With outstanding performance, it achieves an ultrasound depth of up to 30 cm. Users also benefit from superficial resolution less than 2 mm. The SonoBook 8 detects extremely slow speeds less than 2 cm/s and features high-speed detection of 40 m/s, all with a fast image rate thanks to Quad-Beam Technology (Q-Beam).

The durable battery allows for an operational duration of up to 2 hours and lasts up to 1 week in standby mode. This high-quality ultrasound device comes inclusive of the C3-V Convex Probe and the L7-V Linear Probe.

Product Details

• SonoBook 8 Ultrasound Device from Chison in innovative design
• Digital color Doppler ultrasound system
• Portable ultrasound device, lightweight and handy
• With high-resolution 15-inch LED monitor
• Automatic real-time PW tracking and measurement
• Q-image optimises image display intelligently
• Utilises advanced image processing technologies
• Auto-IMT function
• Automatically adjusts screen brightness to the environment
• Fast and silent 128 GB SSD hard drive ensures high data security
• Durable battery for up to 2 hours of continuous operation or up to 1 week in standby mode
• Includes measurement and calculation software packages for general medicine, obstetrics and gynaecology, cardiology
• Features a probe slot
• Weight: approx. 5.4 kg (including battery)
• Dimensions: 366 x 355 x 72 mm (W x D x H)
• Package includes: SonoBook 8 with battery and 2 probes (1 x 4.0 MHz-15.0 MHz Linear Probe (128 elements, 40mm), 1 x 3.0 MHz Convex Probe C3-V)

Areas of Application

• General Medicine
• Cardiology
• Radiology
• Gynaecology
• Anesthesia
• Intensive Care
• Emergency Medicine

Imaging Modes

B, B/M, M, B/BC, CFM, PW, CW, Power Doppler/Directional PD, TDI, Duplex, Quadplex, Trapezoid (only for Linear Probes)

Image Processing Technologies

• FHI: optimises imaging based on patient size and weight
• Multiple Compound Imaging
• SRA: enhances contrast resolution of anatomical representation, suppressing speckle artifacts without distorting tissue structure
• X-Contrast: manual adjustment of contrasts for optical differentiation of tissue density
• Q-Beam: doubles the volume of received signals to enhance image quality & frame rates
• Q-Flow: automatic adjustment of colour signals and noise, improves colour sensitivity of low-velocity flow

Connectivity Options

• 3 integrated USB ports
• DVI-I
• Footswitch
• Video Output
• S-Video
• WIFI
• DICOM 3.0 (optional)
