SONY MCC-500MD Surgical Full HD-Video Camera

SONY MCC-500MD Surgical Full HD-Video Camera

£4,974.50
£0.00 £4,974.50
Sale Sold out
Product overview
  • Clear, high-resolution images in Full HD
  • Easy integration with modern medical modality devices
  • Picture freeze function
  • With 1/2.9 single-chip Exmor CMOS image sensor
  • Can be controlled from external device

SONY MCC-500MD Surgical Video Camera

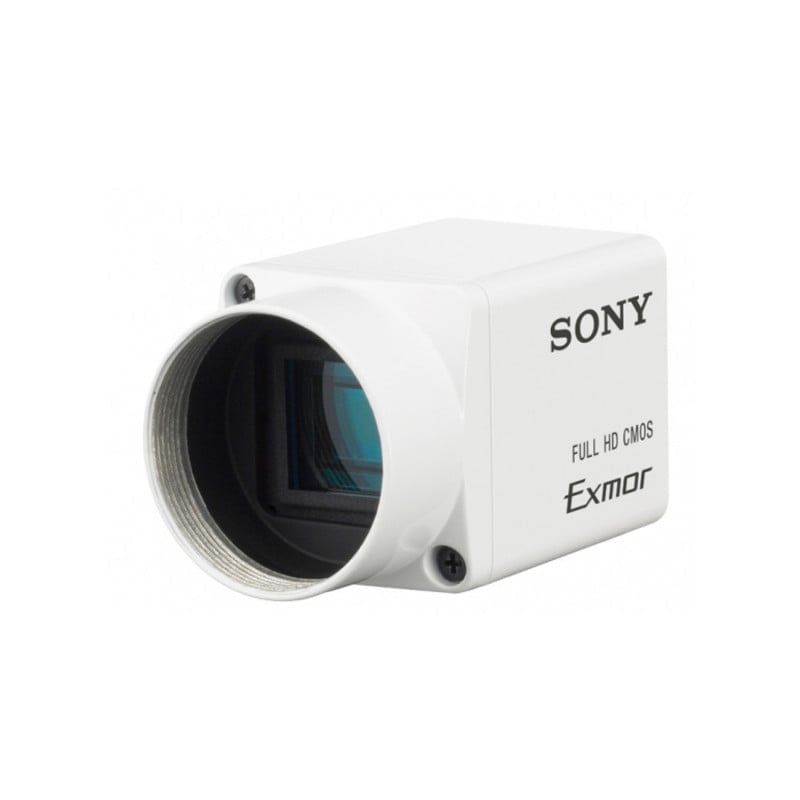

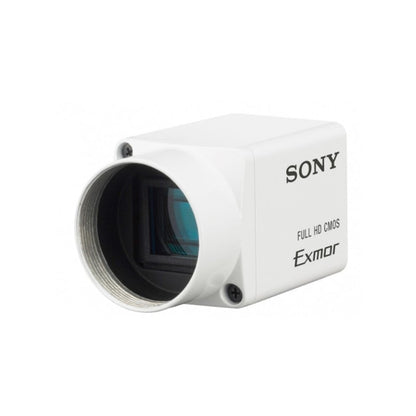

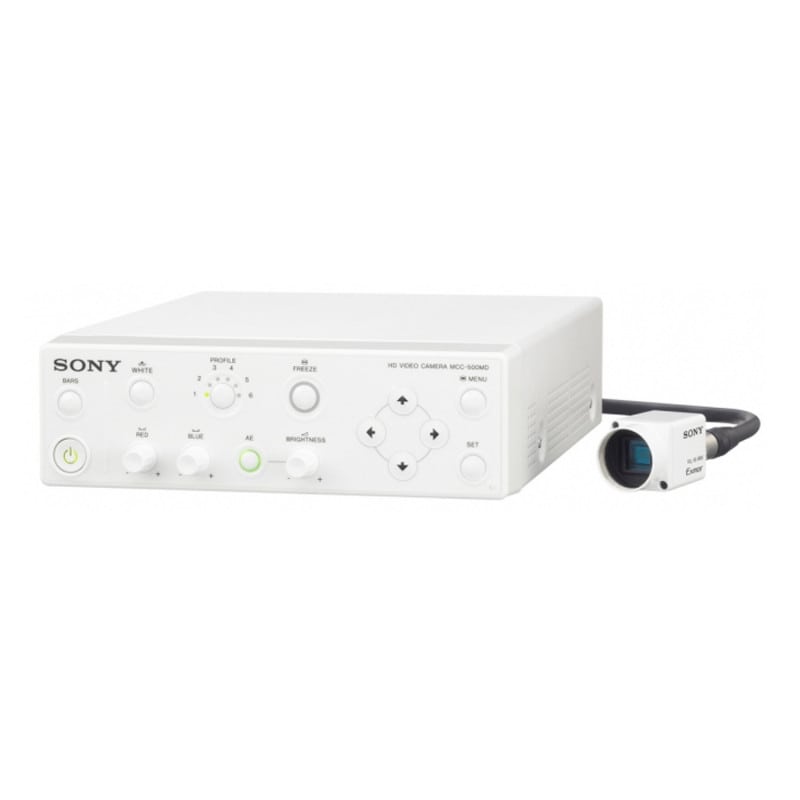

The SONY MCC-500MD Full HD surgical video camera is designed to integrate with medical equipment such as surgical microscopes and slit lamps. The surgical camera consists of a compact camera head and a separate camera control unit (CCU).


To further enhance the quality of the image, the Full HD camera is equipped with a 1/2.9 single-chip "Exmor" CMOS image sensor, offering improved low-light sensitivity compared with traditional equivalent-sized image sensors. The MCC-500MD also offers a wide range of useful functions and shooting modes. Picture profiles can be stored and recalled instantly, reducing time-consuming set-up between procedures.


The unit can also be optionally controlled from an external device such as a computer. With a practical Picture Freeze function, still images can be captured during recording. The wide range of connection options and interfaces make the Full HD camera particularly versatile.


Product Details

  • SONY MCC-500MD Full HD Surgical Video Camera
  • Sharp, clear Full HD image quality
  • Space-saving, two-piece camera
  • Easy integration with modern medical modality devices
  • Brightness and colour can be easily adjusted on the front panel
  • Many useful functions and recording modes
  • Storage of individual picture profiles possible
  • Can be controlled from an external device
  • Remote control of the camera head from a distance of up to 20 m
  • Support for a wide range of HD and SD video formats
  • Fluorescein mode
  • Picture freeze function
  • Complies with medical regulations (IEC 60601-1)

Technical Data

Camera Head
Image Device 1/2.9 type ""Exmor"" CMOS image sensor, single chip type
Effective Pixels 1920 (H) x 1080 (V)
Lens Mount C-mount
Sensitivity F5.6 (Typical) (At 1080/59.94i, 89.9 % reflections, 2000 lx)
Picture S/N 55 dB (Y) (Typical)
Horizontal Resolution 900 TV lines or more
Gain 0 dB to 27 dB
Shutter Speed 1/60 to 1/10000
Camera Cable Connector 20-pin, round
Camera Features
HD-SDI Video format 1080/60P, 1080/60i, 1080/30P
1080/50P, 1080/50i, 1080/25P
HDMI Video Format 1080/60P, 1080/60i, 1080/30P, 480/60P
1080/50P, 1080/50i, 1080/25P, 576/50P
DVI Video Format
 No
Picture Profile Yes (six settings)
Picture Flip Yes
Freeze Function Yes (capturing a still image)
Colour Bar Yes
Cannot be used for image quality adjustment
Camera Synchronization for 3D-shooting Yes
Fluorescein Mode Yes
AC Power Operation Yes

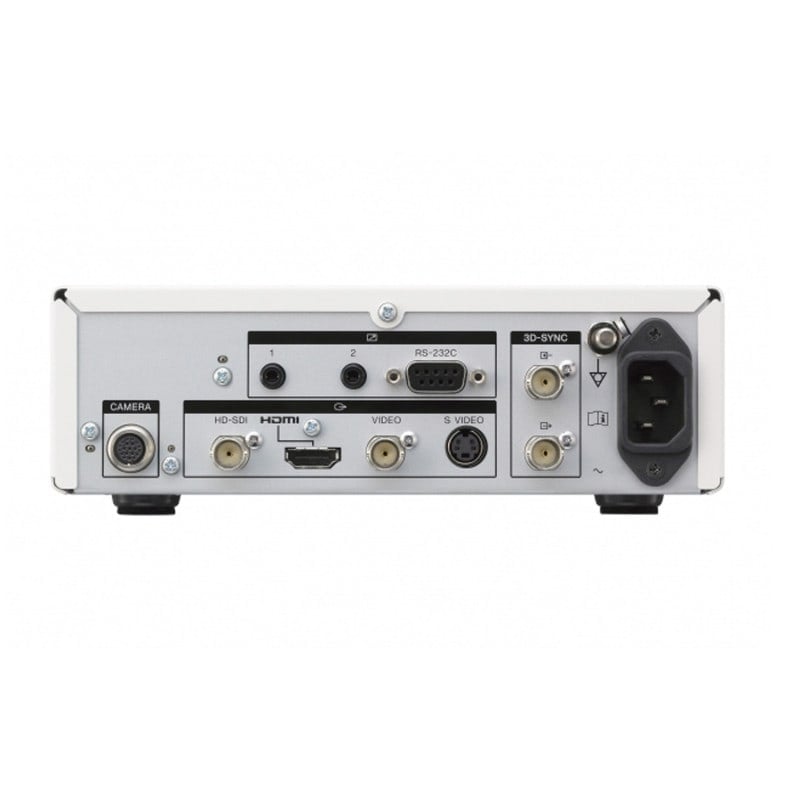

Connectors
Input Connectors Remote contact switch 1, 2 (stereo mini jack)
Output Connectors VIDEO OUT (1x) (BNC)
S-VIDEO OUT (1x) (4-pin mini-DIN connector)
HDMI OUT (1x) (HDMI connector)
HD-SDI OUT (1x)
Input/Output Connectors CAMERA (1x) (20-pin, round)
RS-232C (1x) (D-Sub, 9-pin)
3D SYNC IN (1x), OUT (1x) (BNC)
Other Connectors Equipotential ground connector (1x)
General Information
Power Requirements 100 to 240 V AC, 50/60 Hz
Input Current 0.27 A – 0.18 A
Operating Temperature 0 °C to 40 °C
32 °F to 104 °F
Weight approx. 40 g / approx. 1.4 oz (camera head)
approx. 2.3 kg / approx. 5 lb. 1.1 oz (camera control unit)
Dimensions (W x H x D) approx. 27 x 28 x 49 mm (camera head)
approx. 200 x 62 x 240 mm (camera contol unit)
Items Supplied AC power cord (x1)
Tripod adapter (1x)
Locking screws for tripod adapter (2x)
Lens mount cap (1x)
Instructions for first-time use (1x)
CD-ROM (operating instructions in PDF format) (1x)
Warranty booklet (1x)
List of service contacts (1x)
