Vacuclave® 105
Vacuclave® 105
Couldn't load pickup availability

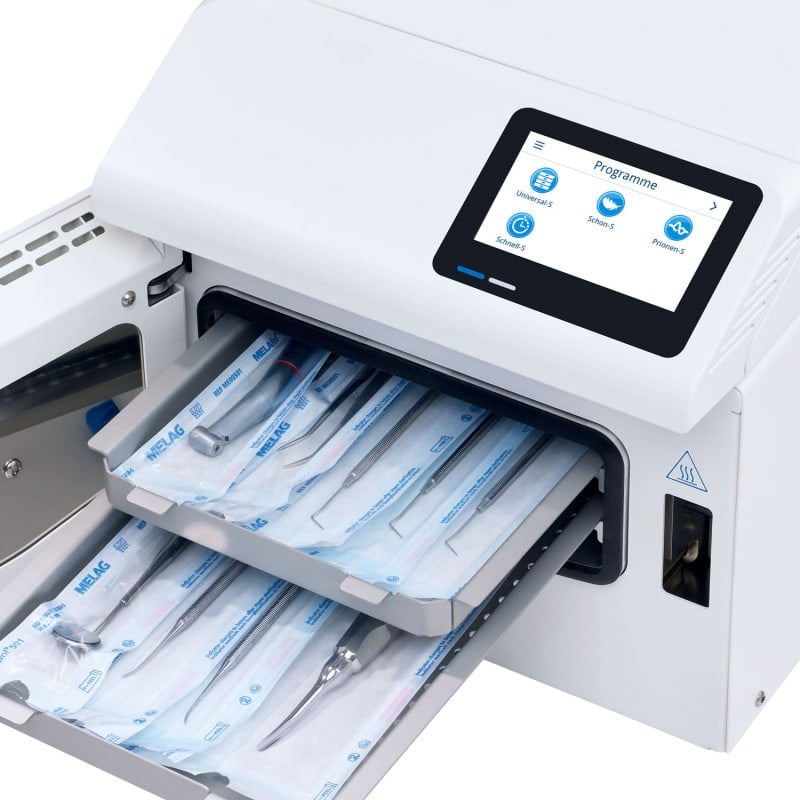

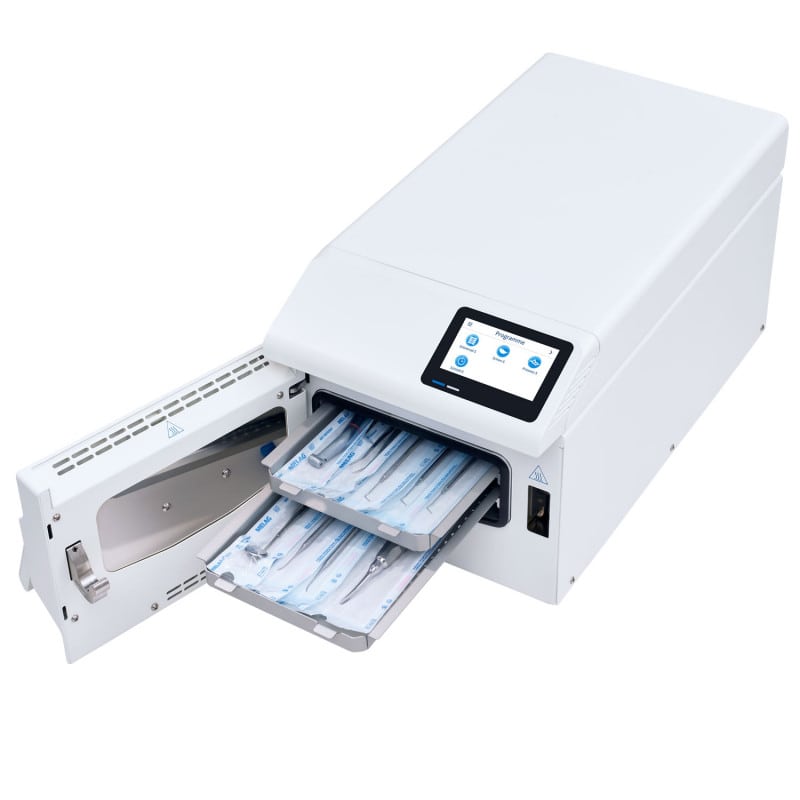

- Sterilization of instruments on 2 trays in record time
- From 6.5 minutes (plus flexDRY drying)
- Powerful vacuum process in accordance with EN13060

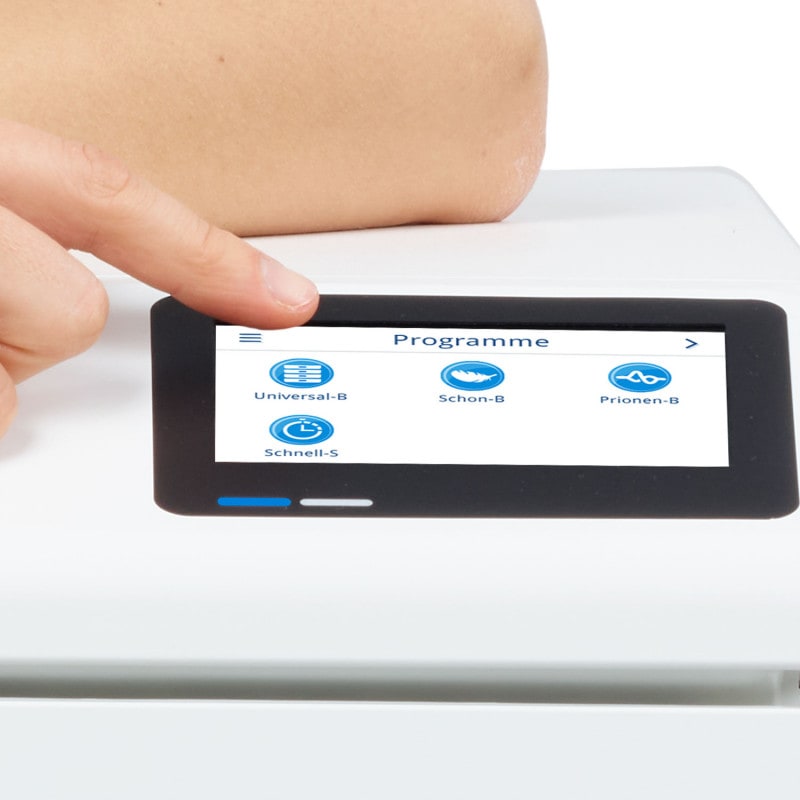

- Smart-Touch display with LED status

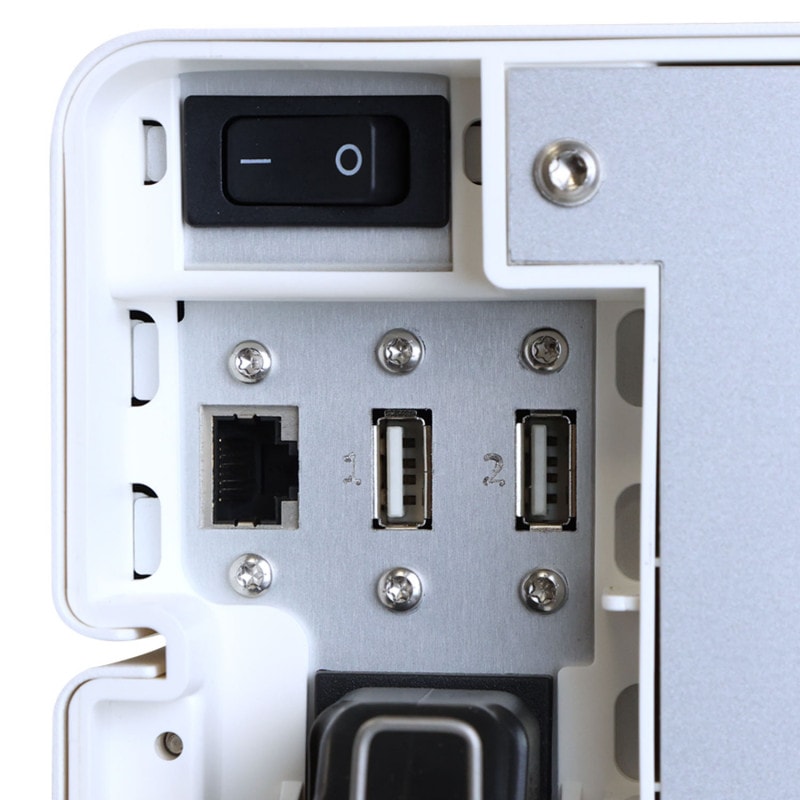

- Documentation via USB stick or network
Vacuclave® 105

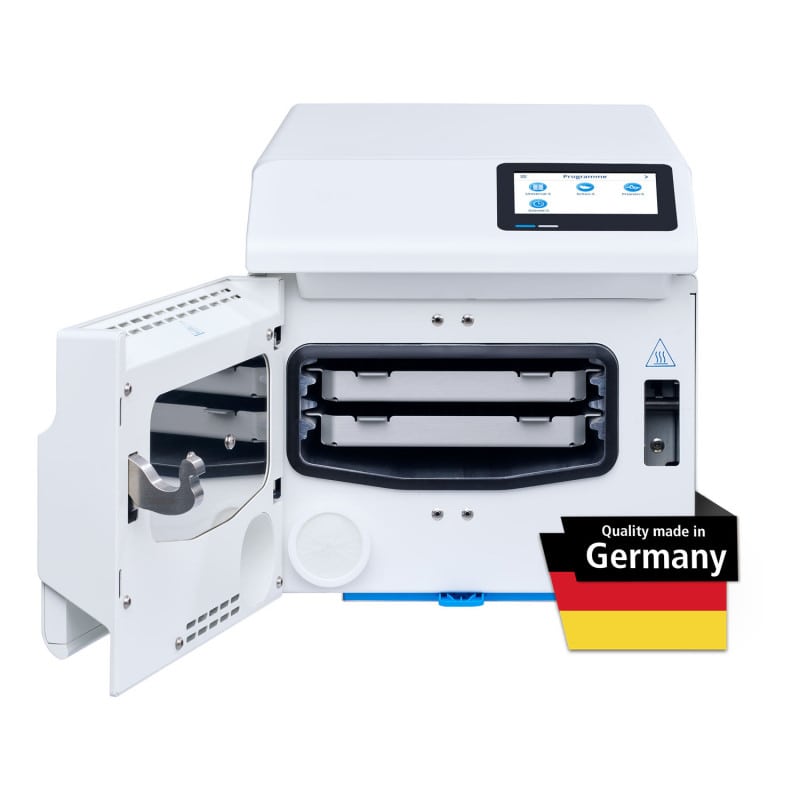

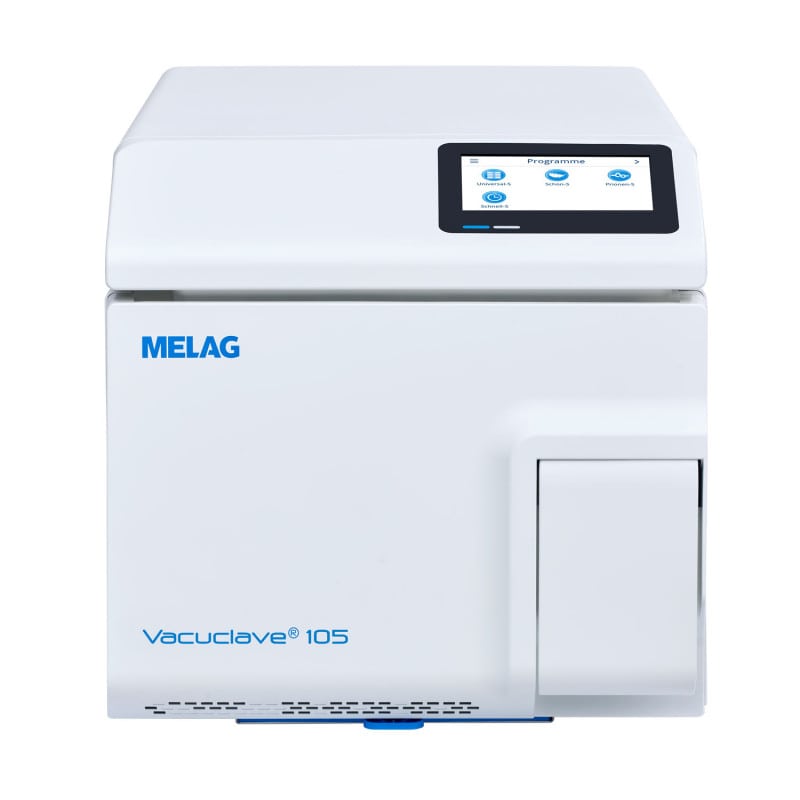

The Vacuclave® 105 from MELAG is one of the fastest Class B autoclaves, delivering sterilization in just 6.5 minutes. Designed for efficiency, it requires 60% less space and weighs 50% less than conventional practice models. With Plug & Play installation, setup is quick and effortless.
Key Features

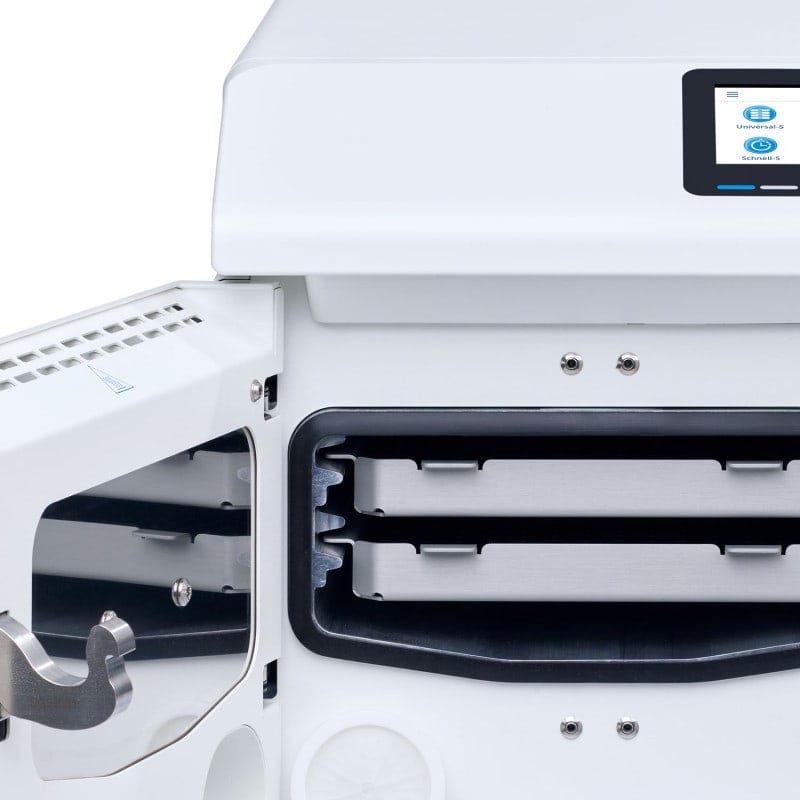

- Ultra-fast sterilization on two trays – perfect for busy clinics
- Up to 80% shorter cycle times, enabling faster workflows
- Sterilization cycles from just 6.5 minutes (plus flexDRY drying)
- Powerful vacuum process in compliance with EN13060
- Smart-touch LED display for intuitive operation
- Automatic protocol storage via USB or network
- Energy-saving Power Save mode for reduced costs
- Compact and lightweight – ideal for small treatment rooms
- RKI-compliant sterilization for maximum hygiene
- High-quality German engineering – developed and manufactured in Berlin
- Includes 5-liter wastewater canister
Fast, Reliable & Energy-Efficient Sterilization
The Vacuclave® 105 is designed for high patient volume environments, offering ultra-fast cycles to optimise workflow efficiency. With flexDRY technology, drying times can be adjusted individually, ensuring flexibility in your sterilization process.
The intuitive smart-touch display simplifies operation, while automatic documentation via USB or network ensures seamless compliance with regulatory standards. Thanks to its Plug & Play installation, the device is ready for immediate use. Plus, its energy-efficient Power Save mode significantly reduces operating costs.
Fully compliant with EN13060 standards, the Vacuclave® 105 guarantees safe, reliable sterilization with automatic cycle documentation for complete traceability. A top choice for modern clinics prioritising speed, safety and efficiency.
Sterilization Programs
| Program | Temperature & Plateau Time | Cycle Time | Drying |
|---|---|---|---|
| Fast-S Program | 134°C, 3.5 min | 6.5–10 min | 5 min |
| Universal-B Program | 134°C, 5.5 min | 11–16 min | 8 min |
| Gentle-B Program | 121°C, 20.5 min | 26–32 min | 20 min |
| Prion-B Program | 134°C, 20.5 min | 26–32 min | 8 min |
Time-controlled drying ensures consistently optimal results.
Technical Specifications
| Device Type | Stand-alone |
| EN 13060 Classification | Type B |
| Smart-Touch Display | 4.3" |
| Chamber Size | 5 Liters |
| Loading Capacity | 2 kg unpackaged 1.5 kg packaged |
| Number of Trays | 2 Trays |
| Cycle Time (without drying) | 6.5-16 minutes |
| Energy Saving Function | Yes |
| Conductivity Measurement | Yes |
| Integrated Documentation Media | Yes |
| Freely Programmable flex-DRY Drying | Yes |
| Maintenance Cycles | 4,000 cycles or 2 years |
| Device Dimensions (W x H x D) | 30 x 30 x 59 cm |
| Device Weight | 28 kg |
| Power Supply | 220-230 V / 50-60 Hz |
| Power Consumption | 2,100 watts |
| Scope of Delivery | Vacuclave 105, User Manual, Factory Test Certificate including Declaration of Conformity, Warranty Certificate, Installation and Setup Certificate, Melag USB Stick, Feed Water Hose, Drain Hose, Wastewater Container, Power Cable, Tray Lifter, Tool for Manual Door Opening |
Order the Vacuclave® 105 Today
Upgrade your clinic with one of the fastest and most space-efficient autoclaves on the market. Order the Vacuclave® 105 today for high-speed, reliable sterilization that keeps your workflows running smoothly.
